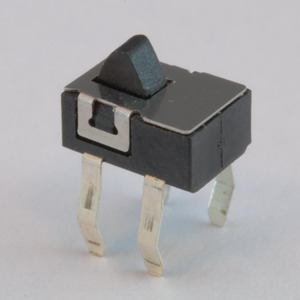

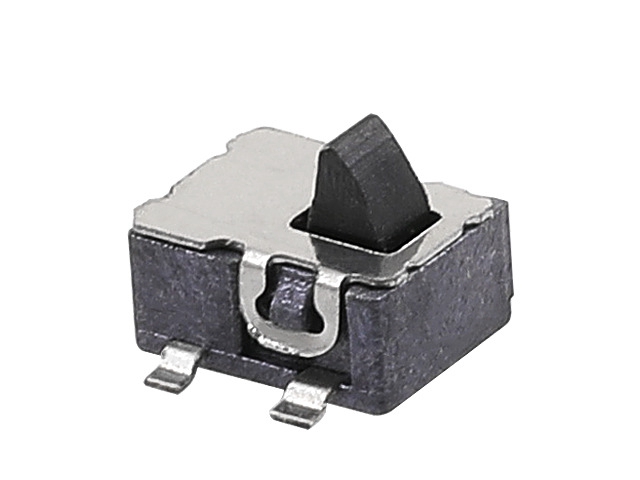

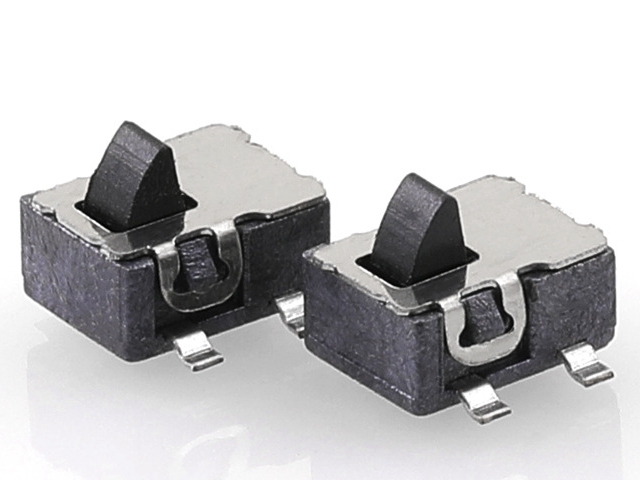

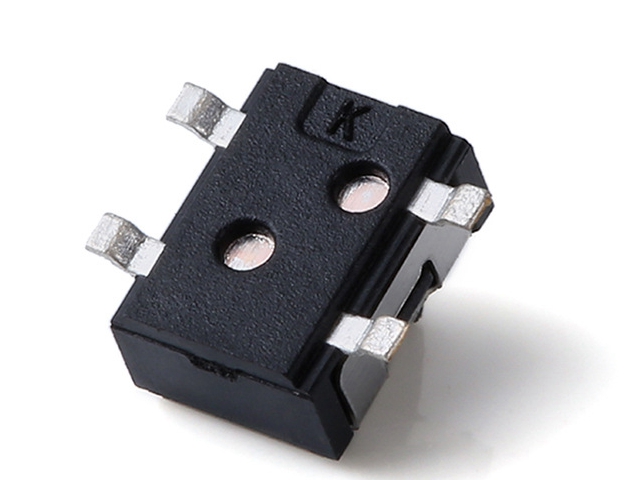

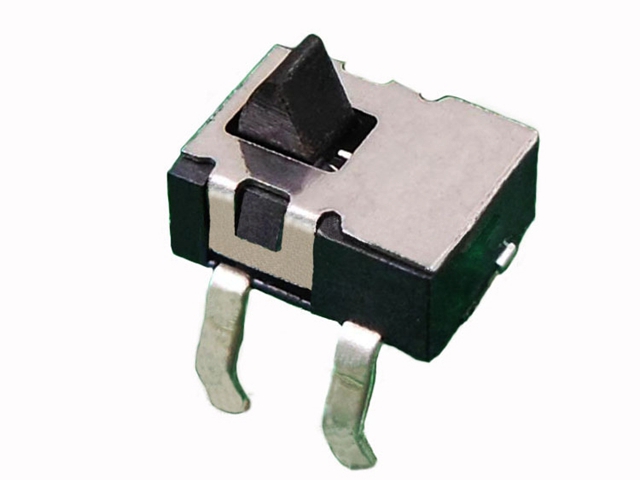

Detector Switch
SPECIFICATION:
Rating: 1mA 5V DC
Operating Force: 50gf
Electrical Strength: AC 100 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 100V DC
Contact Resistance: 100MΩ Max.
Operating Temperature: 10oC ~ 60oC
Mechanical Life: 15,000 cycles
Electrical Life: 15,000 cycles
