Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

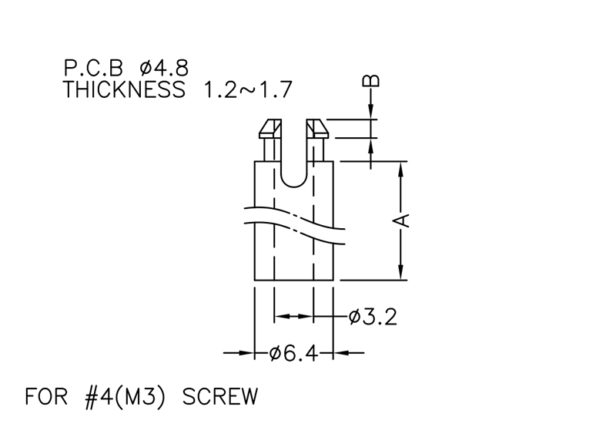

P/N | A | UPPER | Color | Packing | |||
PCB Hole | PCB THICKNESS | ||||||
mm | mm | mm | pcs | ||||
L-KLS8-0236-PSX-03 | 3.2 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-3.5 | 3.5 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-04 | 4.0 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-05 | 4.8 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-5.5 | 5.5 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-06 | 6.4 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-07 | 7.0 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-08 | 8.0 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-10 | 10.0 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-12 | 12.7 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-14 | 14.2 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-16 | 16.0 | 4.8 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236-PSX-25 | 25.4 | 4.8 | 1.2~1.7 | Natural | 500 |
