Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

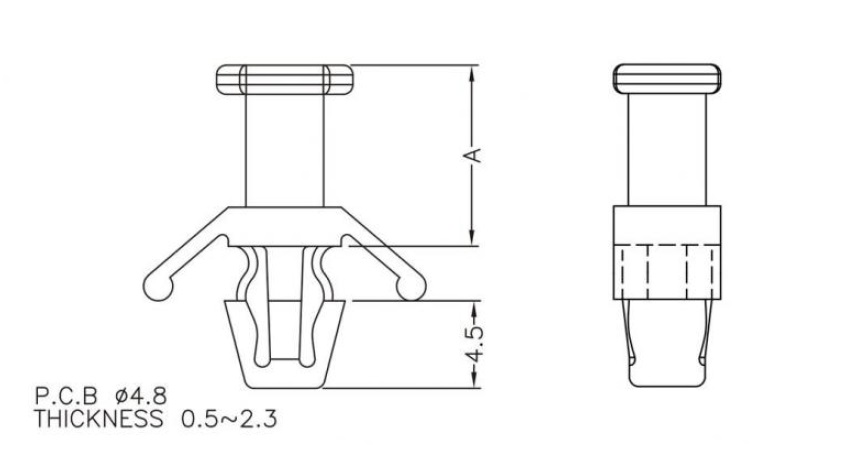

P/N | A | UPPER | CHASSIS | Color | Packing | ||
PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
mm | mm | mm | mm | mm | pcs | ||
L-KLS8-0252-BF-05 | 4.6 | 4.8 | 0.8~2.5 | Natural | 1000 | ||
L-KLS8-0252-BF-09 | 9.3 | 4.8 | 0.8~2.5 | Natural | 1000 | ||
L-KLS8-0252-BF-13 | 12.6 | 4.8 | 0.8~2.5 | Natural | 1000 |
