4.8mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

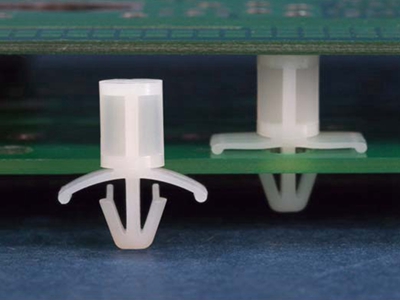

Application: the fixed PC board on the boards, free tools

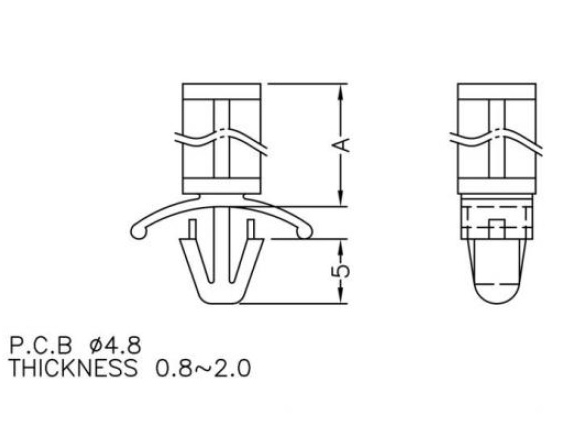

| P/N | A | UPPER | CHASSIS | Color | Packing | ||
| PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
| mm | mm | mm | mm | mm | pcs | ||
| L-KLS8-0203-PS-03 | 3.5 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-05 | 4.8 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-06 | 6.4 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-08 | 7.9 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-10 | 9.5 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-11 | 11.1 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-13 | 12.7 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-16 | 15.9 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-19 | 19.1 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-22 | 22.2 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-25 | 25.4 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-28 | 28.5 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
| L-KLS8-0203-PS-35 | 34.9 | 4.8 | 0.8~2.0 | Natural | 1000 | ||
