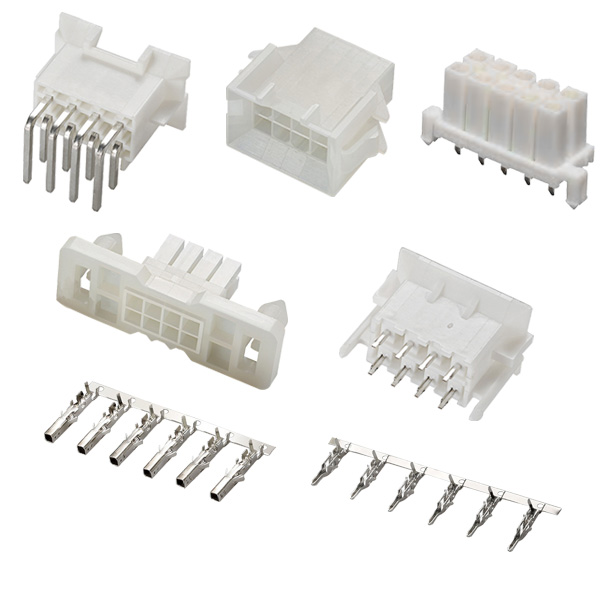

4.20mm Pitch MOLEX Mini-Fit 42474/42475/42385/42404 Wire To Board Connector

Order information:
KLS1-XL1-4.20B-02-H-口
Pitch:4.20mm
02-No.of 02~24 pins

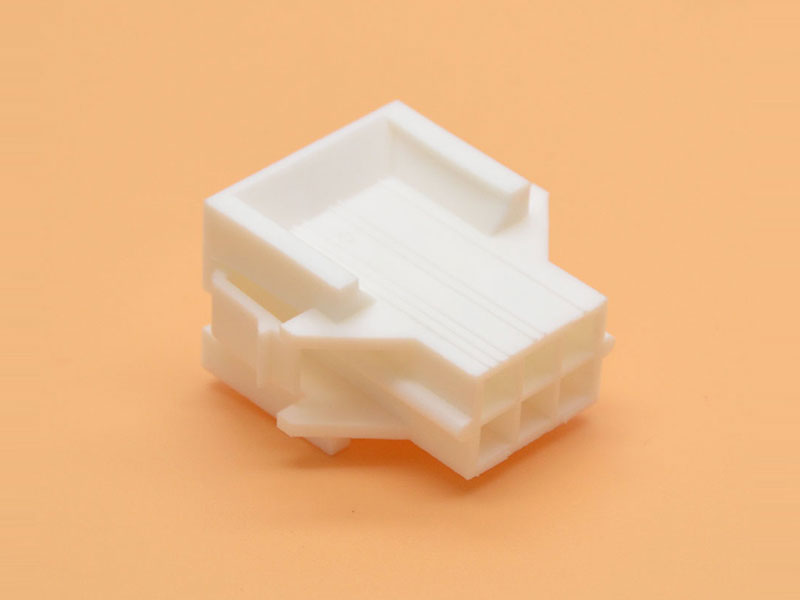

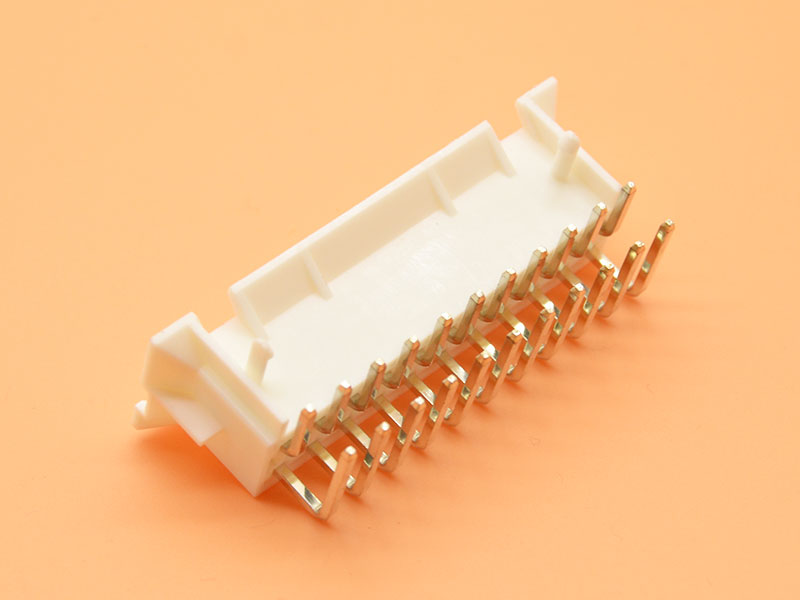

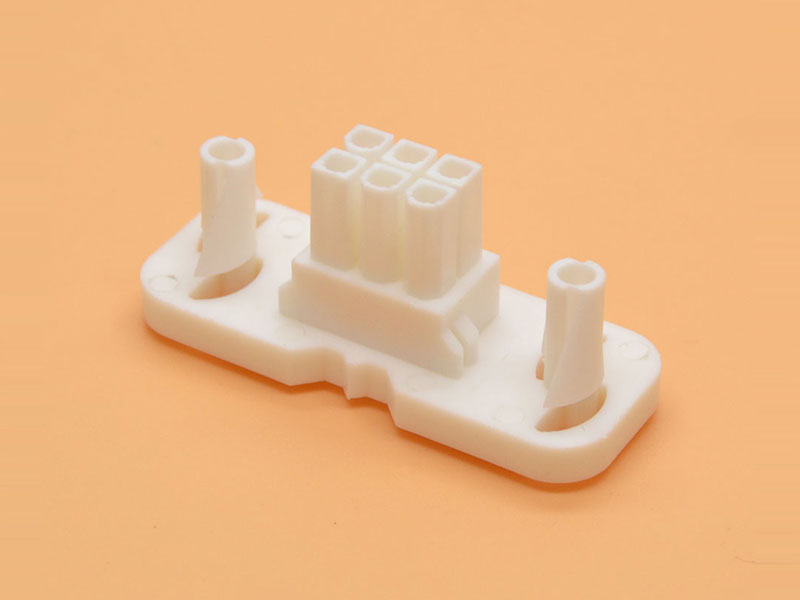

H H1-Housing   S S1-Straight male pin   R-Right angle male pin
Color 口:NONE-Natutal  B-Black

Specifications
◆Material: PA66,UL 94V-2/UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:7.0A AC,DC
◆Voltage rating:600V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#16~#24

KLS1-XL1-4.20B.pdf
