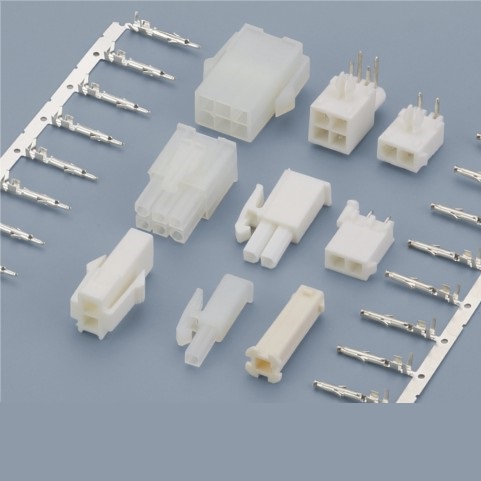

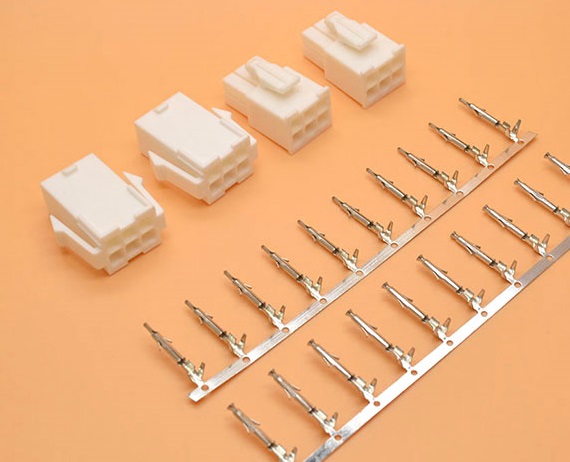

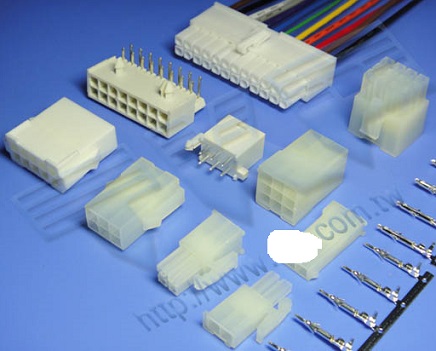

4.14mm Pitch AMP4.14 4141 Wire To Board Connector
- Product Details
4.14mm Pitch AMP4.14 4141 Wire To Board Connector
Order information:
KLS1-FL-4.14-1×3-MH
Pitch:4.14mm
1-Single layer 2-Double layer 3-Three layer
3-No.of 3~15 pins
FH FHW-Female Housing MH-Male Housing FT-Female Terminal MT-Male Terminal S-Straight male pin R-Right angle male pin
Specifications
◆Material: PA66,UL 94V-2/UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:7.0A AC,DC
◆Voltage rating:600V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#18~#22
