4.0mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

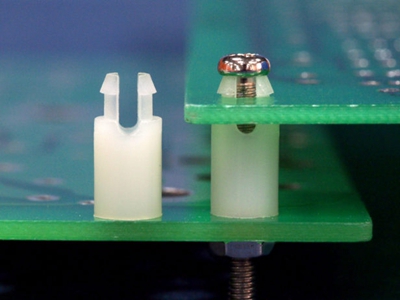

Application: the fixed PC board on the boards, free tools

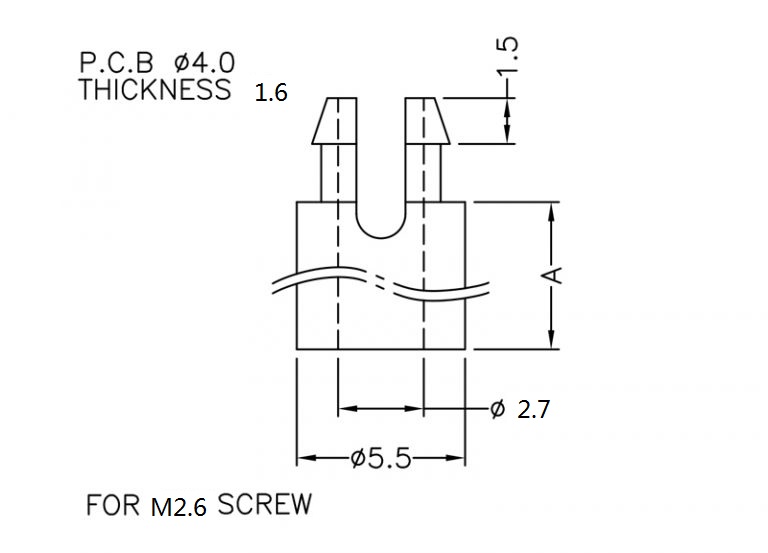

| P/N | A | UPPER | Color | Packing | |||
| PCB Hole | PCB THICKNESS | ||||||
| mm | mm | mm | pcs | ||||
| L-KLS8-0228-BNH-2.5 | 2.5 | 4.0 | 1.6 | Natural | 2000 | ||
| L-KLS8-0228-BNH-03 | 3.0 | 4.0 | 1.6 | Natural | 2000 | ||
| L-KLS8-0228-BNH-3.5 | 4.0 | 4.0 | 1.6 | Natural | 2000 | ||
| L-KLS8-0228-BNH-04 | 5.0 | 4.0 | 1.6 | Natural | 2000 | ||
| L-KLS8-0228-BNH-4.5 | 6.0 | 4.0 | 1.6 | Natural | 2000 | ||
