PCB Spacer Supports

Home > Products > Wiring Accessories > PCB Spacer Supports > Details

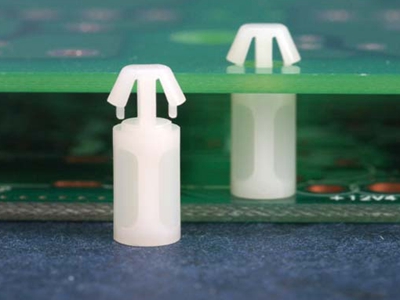

4.0mm Spacer Support

  • Model: KLS8-0259
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature:  0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H  50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance:    B-130°C  (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

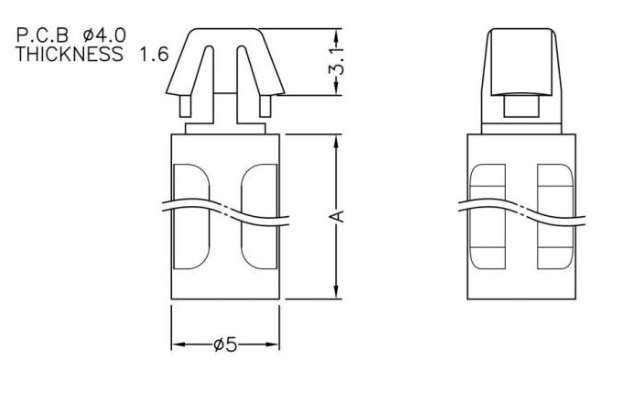

P/N A UPPER  　 Color Packing
PCB Hole PCB THICKNESS 　 　
　 mm mm mm 　 　 　 pcs
L-KLS8-0259-EM063 6.3 4.0 1.2~1.7 　 　 Natural 2000
L-KLS8-0259-EM070 7.0 4.0 1.2~1.7 　 　 Natural 2000
L-KLS8-0259-EM075 7.5 4.0 1.2~1.7 　 　 Natural 2000
L-KLS8-0259-EM080 8.0 4.0 1.2~1.7 　 　 Natural 2000
L-KLS8-0259-EM085 8.5 4.0 1.2~1.7 　 　 Natural 2000
L-KLS8-0259-EM090 9.0 4.0 1.2~1.7 　 　 Natural 2000
L-KLS8-0259-EM100 10.0 4.0 1.2~1.7 　 　 Natural 2000
L-KLS8-0259-EM115 11.5 4.0 1.2~1.7 　 　 Natural 1000
L-KLS8-0259-EM127 12.7 4.0 1.2~1.7 　 　 Natural 1000
L-KLS8-0259-EM164 16.4 4.0 1.2~1.7 　 　 Natural 1000
