Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

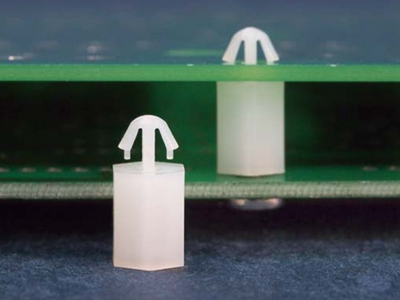

Application: the fixed PC board on the boards, free tools

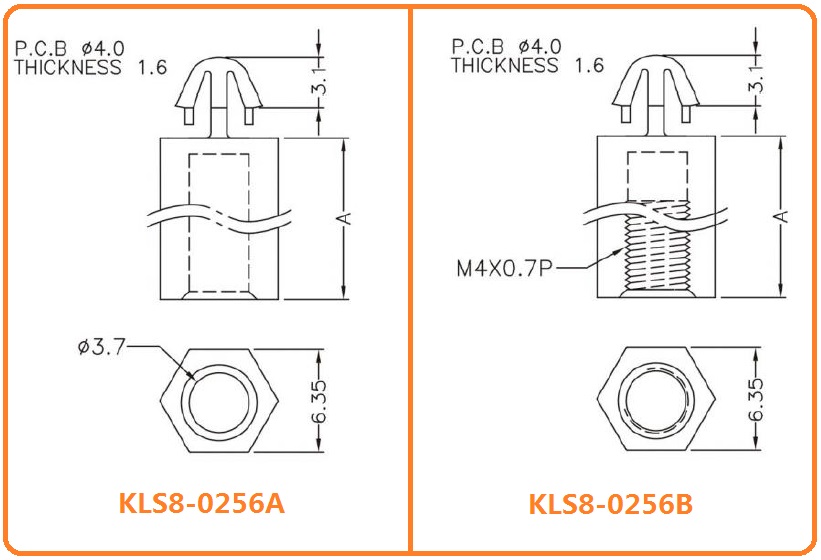

P/N | A | UPPER | CHASSIS | Color | Packing | ||
PCB Hole | PCB THICKNESS | THERD | |||||
mm | mm | mm | mm | pcs | |||
L-KLS8-0256A-BR-05 | 5.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-06 | 6.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-07 | 7.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-08 | 8.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-09 | 9.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-10 | 10.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-11 | 11.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-13 | 12.7 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-14 | 14.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-15 | 15.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-16 | 15.9 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256A-BR-20 | 20.0 | 4.0 | 1.6 | 3.7 | Natural | 2000 | |
L-KLS8-0256B-BT-05 | 5.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-06 | 6.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-07 | 7.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-08 | 8.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-09 | 9.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-10 | 10.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-11 | 11.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-13 | 12.7 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-14 | 14.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-15 | 15.0 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-16 | 15.9 | 4.0 | 1.6 | M4 | Natural | 2000 | |
L-KLS8-0256B-BT-20 | 20.0 | 4.0 | 1.6 | M4 | Natural | 2000 |
