Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

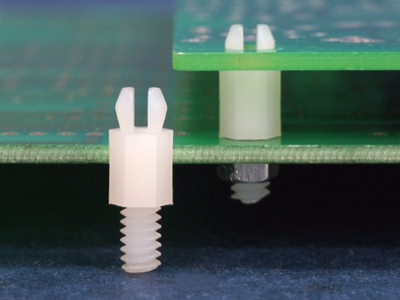

Application: the fixed PC board on the boards, free tools

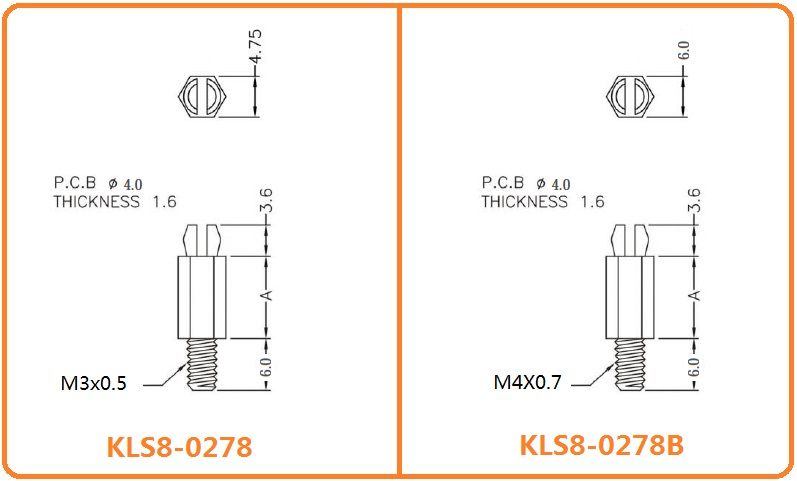

P/N | A | UPPER | CHASSIS | Color | Packing | ||
PCB Hole | PCB THICKNESS | THERD | |||||
mm | mm | mm | mm | pcs | |||
L-KLS8-0278-M3-03 | 3.2 | 4.0 | 1.6 | M3 | Natural | 2000 | |
L-KLS8-0278-M3-05 | 4.8 | 4.0 | 1.6 | M3 | Natural | 1000 | |
L-KLS8-0278-M3-06 | 6.0 | 4.0 | 1.6 | M3 | Natural | 1000 | |
L-KLS8-0278-M3-08 | 8.0 | 4.0 | 1.6 | M3 | Natural | 1000 | |
L-KLS8-0278-M3-10 | 10.0 | 4.0 | 1.6 | M3 | Natural | 1000 | |
L-KLS8-0278-M3-12 | 12.0 | 4.0 | 1.6 | M3 | Natural | 1000 | |
L-KLS8-0278-M3-15 | 15.0 | 4.0 | 1.6 | M3 | Natural | 1000 | |
L-KLS8-0278B-M4-06 | 6.0 | 4.0 | 1.6 | M4 | Natural | 1000 | |
L-KLS8-0278B-M4-08 | 8.0 | 4.0 | 1.6 | M4 | Natural | 1000 | |
L-KLS8-0278B-M4-10 | 10.0 | 4.0 | 1.6 | M4 | Natural | 1000 | |
L-KLS8-0278B-M4-12 | 12.0 | 4.0 | 1.6 | M4 | Natural | 1000 | |
L-KLS8-0278B-M4-15 | 15.0 | 4.0 | 1.6 | M4 | Natural | 1000 |
