Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

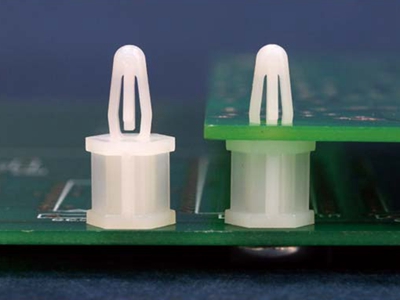

Application: the fixed PC board on the boards, free tool

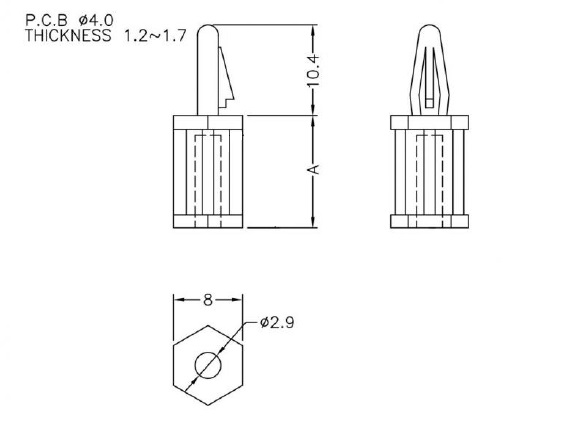

P/N | A | UPPER | CHASSIS | Color | Packing | ||
PCB Hole | PCB THICKNESS | THERD | |||||
mm | mm | mm | mm | pcs | |||
L-KLS8-0250-BD-06 | 6.4 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-10 | 9.6 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-13 | 12.7 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-14 | 14.0 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-15 | 15.0 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-16 | 15.9 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-19 | 19.1 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-20 | 20.0 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-22 | 22.2 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-25 | 25.4 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 | |
L-KLS8-0250-BD-28 | 28.6 | 4.0 | 1.2~1.7 | M3.5 | Natural | 1000 |
