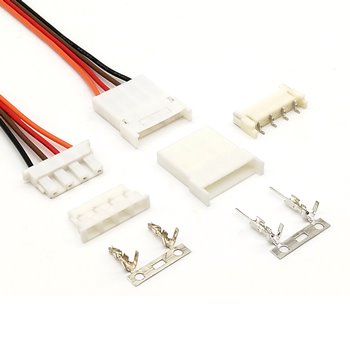

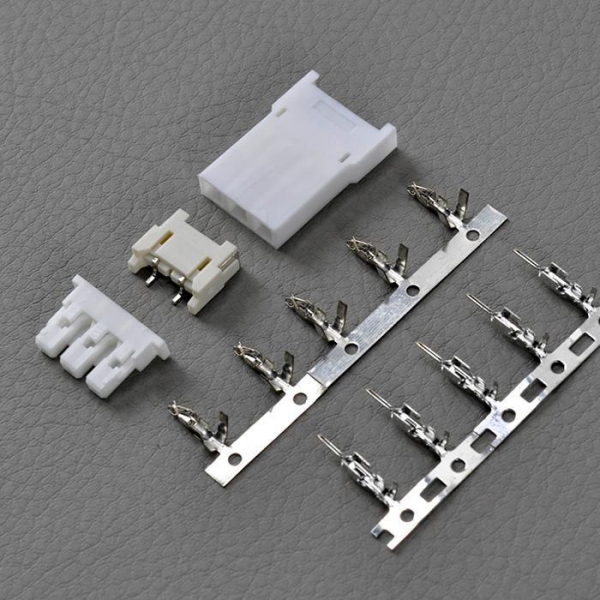

4.00mm JST BH Type Wire To Board Connector
- Product Details
4.00mm JST BH Type Wire To Board Connector
Order information:
KLS1-XL1-4.00-XX-FH
Pitch:4.00mm
XX-No.of 02~05 pins
FH-Female Housing MH-Male Housing FT-Female Terminal MT-Male Terminal RM-Horizontal SMT Pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:600V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1800V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#22~#28
