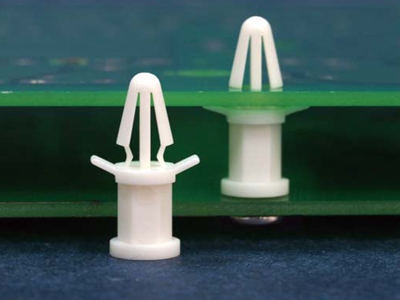

4.0/M3 Spacer Support

  • Model: KLS8-0208A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature:  0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H  50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance:    B-130°C  (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

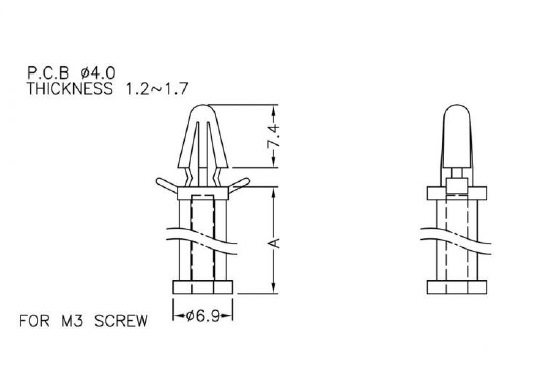

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole 　
　 mm mm mm mm 　 　 pcs
L-KLS8-0208A-CS-05 5.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-06 6.4 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-07 7.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-10 10.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-12.5 12.5 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-15 15.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-16 16.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-20 20.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-25 25.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-26 26.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-30 30.0 4.0 1.2~1.7 M3 　 Natural 1000
L-KLS8-0208A-CS-35 35.0 4.0 1.2~1.7 M3 　 Natural 1000
