4.0/7.9mm Spacer Support

  • Model: KLS8-0264
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature:  0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H  50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance:    B-130°C  (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

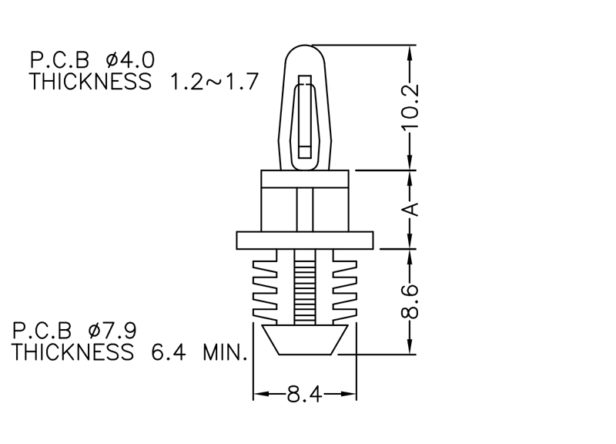

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0264-NA048 4.8 4.0 1.2~1.7 7.9 6.4 Natural 1000
L-KLS8-0264-NA064 6.4 4.0 1.2~1.7 7.9 6.4 Natural 1000
L-KLS8-0264-NA095 9.5 4.0 1.2~1.7 7.9 6.4 Natural 1000
L-KLS8-0264-NA111 11.1 4.0 1.2~1.7 7.9 6.4 Natural 1000
L-KLS8-0264-NA127 12.7 4.0 1.2~1.7 7.9 6.4 Natural 1000
L-KLS8-0264-NA159 15.9 4.0 1.2~1.7 7.9 6.4 Natural 1000
L-KLS8-0264-NA191 19.1 4.0 1.2~1.7 7.9 6.4 Natural 1000
L-KLS8-0264-NA222 22.2 4.0 1.2~1.7 7.9 6.4 Natural 1000
L-KLS8-0264-NA254 25.4 4 1.2~1.7 7.9 6.4 Natural 1000
