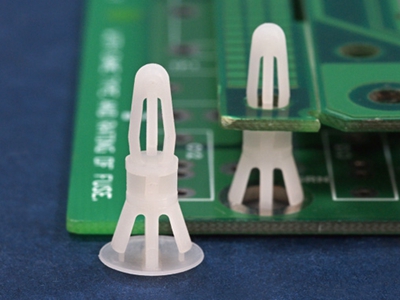

4.0/6.0mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

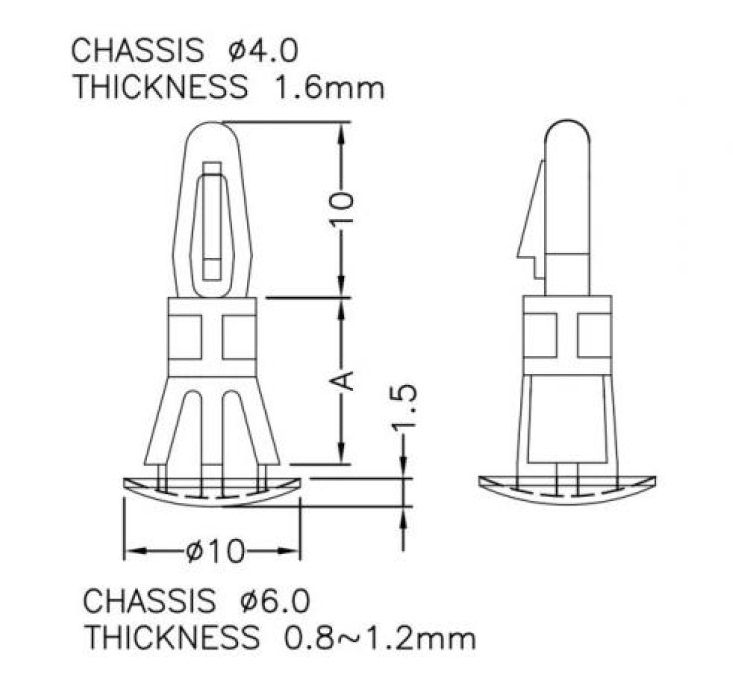

| P/N | A | UPPER | CHASSIS | Color | Packing | ||
| PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
| mm | mm | mm | mm | mm | pcs | ||
| L-KLS8-2115-BST-4.8 | 4.8 | 4.0 | 1.6 | 6.0 | 0.8~1.2 | Natural | 1000 |
| L-KLS8-2115-BST-6.4 | 6.4 | 4.0 | 1.6 | 6.0 | 0.8~1.2 | Natural | 1000 |
| L-KLS8-2115-BST-08 | 8.0 | 4.0 | 1.6 | 6.0 | 0.8~1.2 | Natural | 1000 |
| L-KLS8-2115-BST-9.5 | 9.5 | 4.0 | 1.6 | 6.0 | 0.8~1.2 | Natural | 1000 |
| L-KLS8-2115-BST-12.7 | 12.7 | 4.0 | 1.6 | 6.0 | 0.8~1.2 | Natural | 1000 |
| L-KLS8-2115-BST-19 | 19.0 | 4.0 | 1.6 | 6.0 | 0.8~1.2 | Natural | 1000 |
