Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

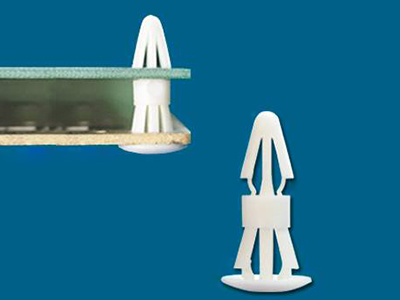

Application: the fixed PC board on the boards, free tools

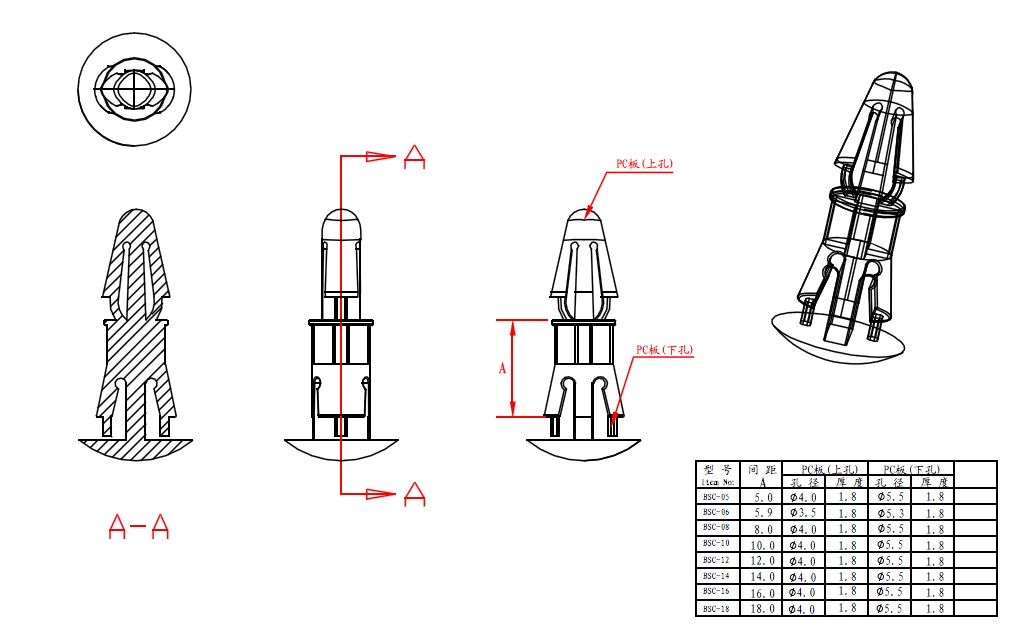

P/N | A(mm) | UPPER | CHASSIS | Color | Packing | ||
PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
L-KLS8-0239-BSC-05 | 5.0 | 4.0mm | 1.8mm | 5.5mm | 1.8mm | Natural | 1000pcs |
L-KLS8-0239-BSC-06 | 5.9 | 4.0mm | 1.8mm | 5.5mm | 1.8mm | Natural | 1000pcs |
L-KLS8-0239-BSC-08 | 8.0 | 4.0mm | 1.8mm | 5.5mm | 1.8mm | Natural | 1000pcs |
L-KLS8-0239-BSC-10 | 10.0 | 4.0mm | 1.8mm | 5.5mm | 1.8mm | Natural | 1000pcs |
L-KLS8-0239-BSC-12 | 12.0 | 4.0mm | 1.8mm | 5.5mm | 1.8mm | Natural | 1000pcs |
L-KLS8-0239-BSC-14 | 14.0 | 4.0mm | 1.8mm | 5.5mm | 1.8mm | Natural | 1000pcs |
L-KLS8-0239-BSC-16 | 16.0 | 4.0mm | 1.8mm | 5.5mm | 1.8mm | Natural | 1000pcs |
L-KLS8-0239-BSC-18 | 18.0 | 4.0mm | 1.8mm | 5.5mm | 1.8mm | Natural | 1000pcs |
