Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

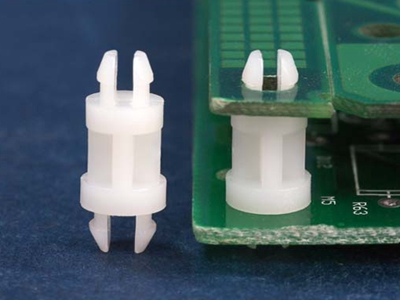

Application: the fixed PC board on the boards, free tools
P/N | A | UPPER | CHASSIS | Color | Packing | ||
PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
mm | mm | mm | mm | mm | pcs | ||
L-KLS8-0245-4.8 | 4.8 | 4.0 | 1.6 | 4.8 | 1.8 | Natural | 1000 |
L-KLS8-0245-6.4 | 6.4 | 4.0 | 1.6 | 4.8 | 1.8 | Natural | 1000 |
L-KLS8-0245-9.5 | 9.5 | 4.0 | 1.6 | 4.8 | 1.8 | Natural | 1000 |
L-KLS8-0245-12.7 | 12.7 | 4.0 | 1.6 | 4.8 | 1.8 | Natural | 1000 |
L-KLS8-0245-15.9 | 15.9 | 4.0 | 1.6 | 4.8 | 1.8 | Natural | 1000 |
L-KLS8-0245-19 | 19.1 | 4.0 | 1.6 | 4.8 | 1.8 | Natural | 1000 |
L-KLS8-0245-22.2 | 22.2 | 4.0 | 1.6 | 4.8 | 1.8 | Natural | 1000 |
L-KLS8-0245-25.4 | 25.4 | 4.0 | 1.6 | 4.8 | 1.8 | Natural | 1000 |
