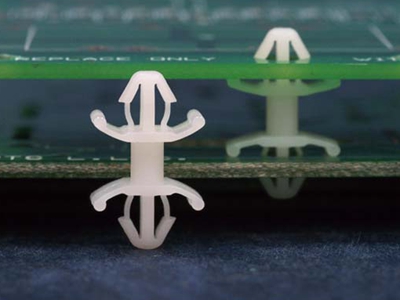

4.0/4.0mm Spacer Support

  • Model: KLS8-0201D
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

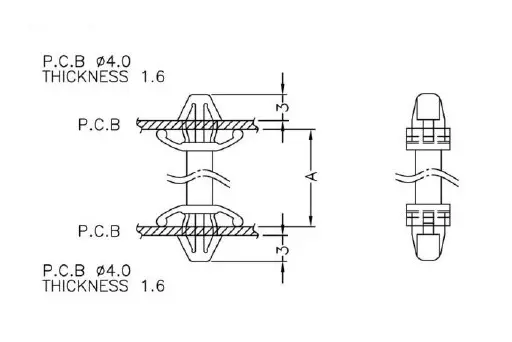

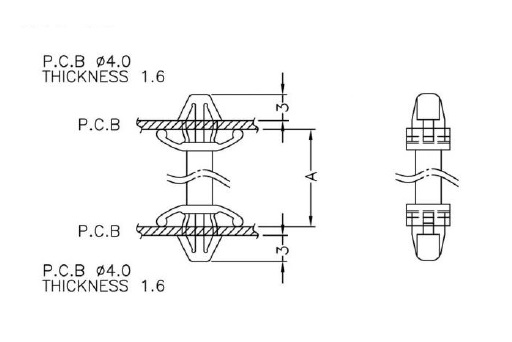

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0201D-CN-06 6.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-08 8.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-10 10.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-12 12.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-13 13.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-14 14.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-16 16.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-17 16.8 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-18 18.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-20 20.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0201D-CN-42 42.0 4.0 1.6 4.0 1.6 Natural 1000
