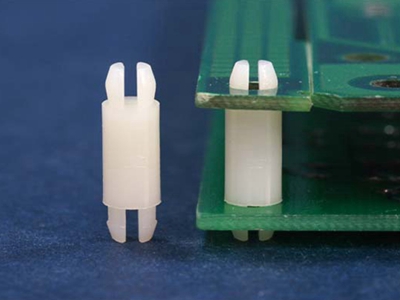

4.0/4.0mm Spacer Support

  • Model: KLS8-0237A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

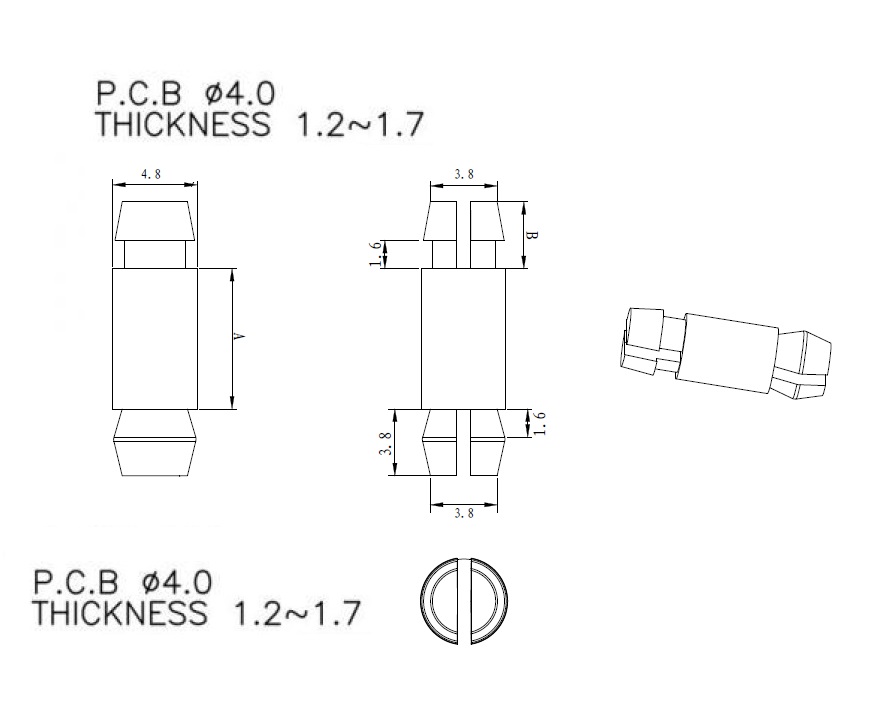

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0202-SP-3 3.2 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-4 4.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-4.5 4.5 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-5 5.3 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-6 6.3 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-7 7.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-8 8.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-9 9.5 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-10 10.5 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-13 12.7 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-14 14.0 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-16 15.9 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-17 16.5 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-19 19.1 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-22 22.2 4.0 1.6 4.0 1.6 Natural 1000
L-KLS8-0202-SP-25 25.4 4.0 1.6 4.0 1.6 Natural 1000
