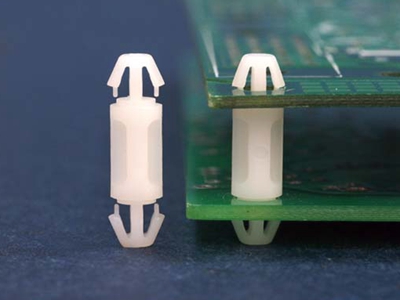

4.0/4.0mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools
| P/N | A | UPPER | CHASSIS | Color | Packing | ||
| PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
| mm | mm | mm | mm | mm | pcs | ||
| L-KLS8-0220-BLF-03S | 3.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-03 | 3.5 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-04 | 4.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-05 | 5.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-06 | 6.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-6.4 | 6.4 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-08 | 8.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-9.5 | 9.5 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-10 | 10.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-10.5 | 10.5 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-11.5 | 11.5 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-12S | 12.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-12 | 12.7 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-14 | 14.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-15 | 15.9 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-18 | 18.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-19 | 19.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-20 | 20.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-25 | 25.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-27 | 27.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-30 | 30.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-34 | 34.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
| L-KLS8-0220-BLF-40 | 40.0 | 4.0 | 1.2~1.7 | 4.0 | 1.2~1.7 | Natural | 1000 |
