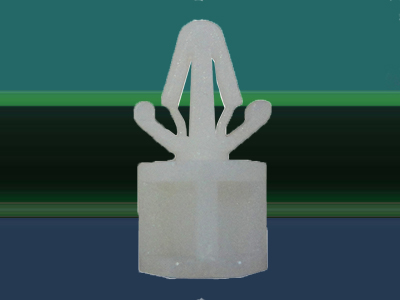

4.0/3.0mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools
| P/N | A | UPPER | CHASSIS | Color | Packing | ||
| PCB Hole | PCB THICKNESS | PCB Hole | |||||
| mm | mm | mm | mm | pcs | |||
| L-KLS8-0208-CS-5 | 5.0 | 4.0 | 0.5~2.0 | 3.0 | Natural | 1000 | |
| L-KLS8-0208-CS-10 | 9.6 | 4.0 | 0.5~2.0 | 3.0 | Natural | 1000 | |
| L-KLS8-0208-CS-13 | 12.7 | 4.0 | 0.5~2.0 | 3.0 | Natural | 1000 | |
| L-KLS8-0208-CS-19 | 19.1 | 4.0 | 0.5~2.0 | 3.0 | Natural | 1000 | |
| L-KLS8-0208-CS-28 | 28.0 | 4.0 | 0.5~2.0 | 3.0 | Natural | 1000 | |
| L-KLS8-0208-CS-35 | 35.0 | 4.0 | 0.5~2.0 | 3.0 | Natural | 1000 | |
