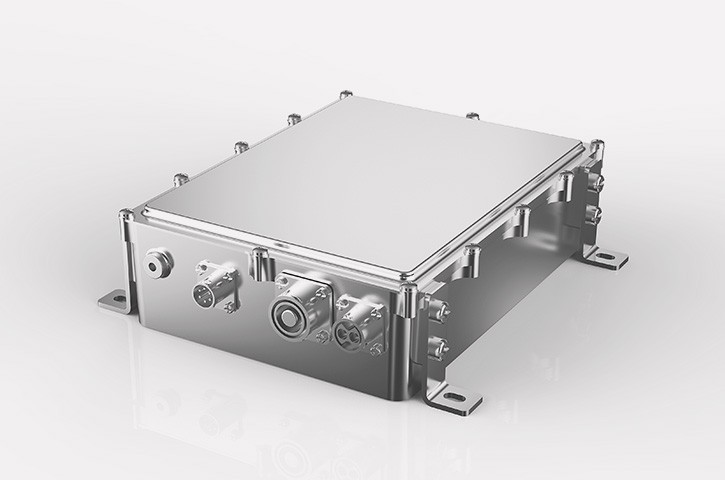

3KW DC/DC converter (liquid cooled)

  • Model: KLS1-DCDC-3KW-01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

 It is characterized by stable technical performance, high efficiency, small volume, high protection grade and high seismic grade .
 Adopt liquid cooling way, heat dissipation speed is fast, dustproof, noise is small.

Application:
 New energy vehicle
 Industrial control products
 Energy storage power station
 IDC Data Center
 Product size: 250*196*98mm (without plug-ins)
 Product weight: 2.5kg
 Rated input voltage: 336Vac/384Vac (customizable)
 Rated output voltage: 14Vd C /27Vdc
 Maximum output current: 112A/215A
 Rated output power: 3KW
 Maximum output power: 3.6KW
 Efficiency: 95%
 Protection level: IP67
 Communication port: CAN2.0
