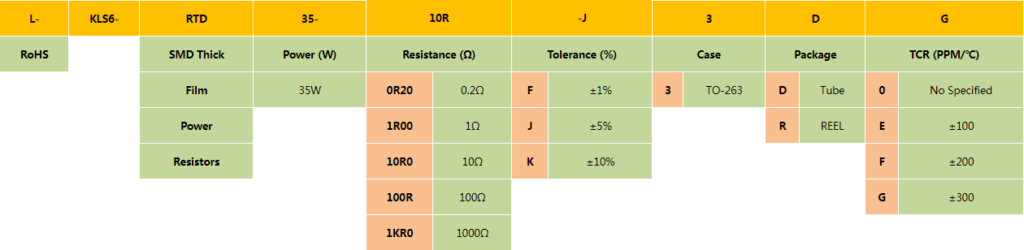

Order Information:

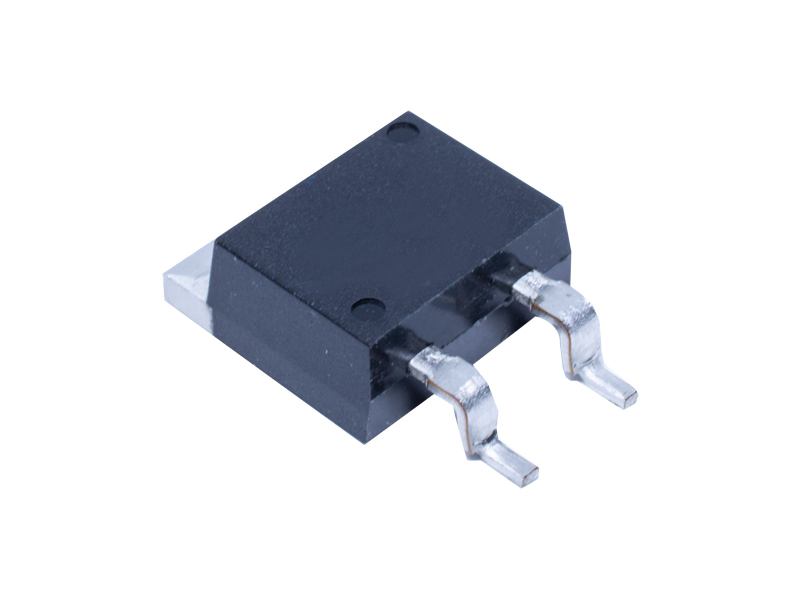

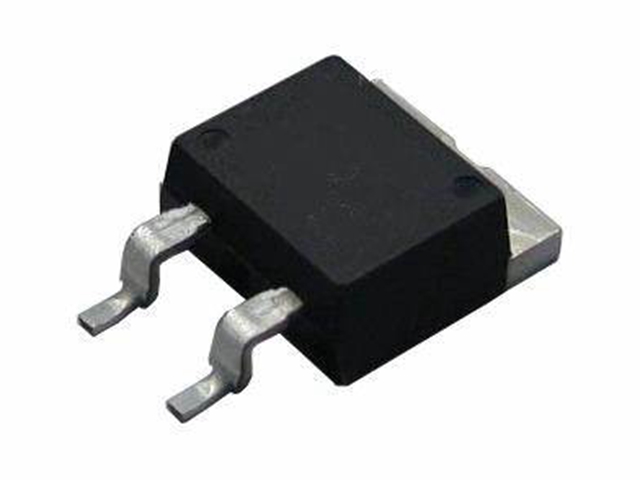

SMD High power resistor, thick film with packaged TO 263. applicaions are for switching power supply and Snubberscircuit, automated machine controller, RF power amplifier, low energy pulse loading , UPS, voltage regulation ,bleeder resistor.

Features :

n35 watts at 25°C case temperature heat sink mounted.
nTO-263 style power package.
nMolded case for protection and easy to mount.
nResistor is electrically isolated from metal tab.
nProducts with Pb-free Terminations and RoHS compliant.

Applications :Construction:
nSwitching Power Supplies
nSnubbers Circuits
nAutomated Machine Controller
nRF Power Amplifiers
nLow Energy Pulse Loading
nUPS
nVoltage Regulation
nBleeder Resistors

Electrical Characteristics SpecificationsDerating Curve:

nResistance Range: 0.2Ω – 130KΩ

nOperating Voltage: 350V Max.

nDielectric Strength: 1800VAC

nInsulation Resistance: 10GΩ min.

nOperating Temperature: -55°C to +125°C
