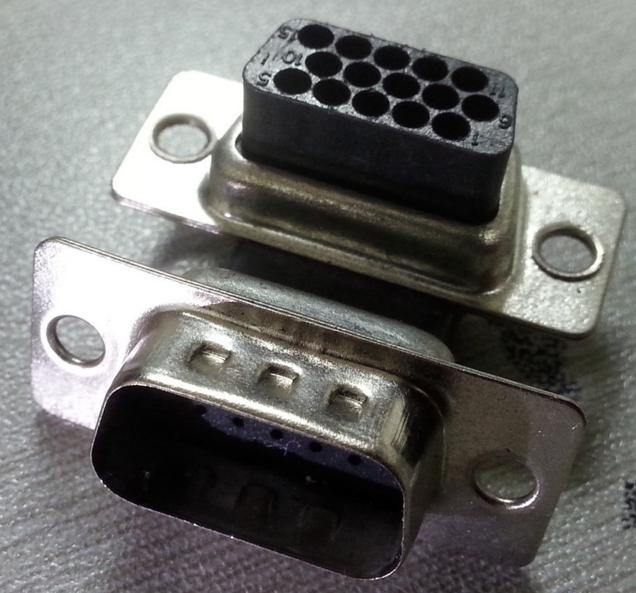

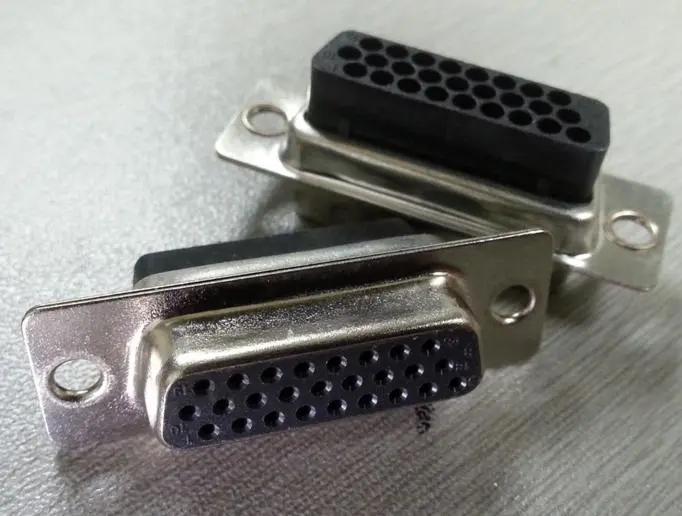

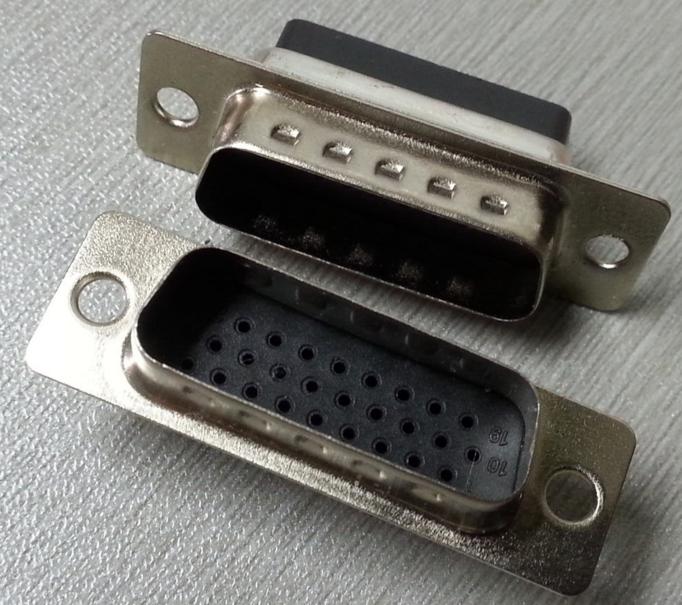

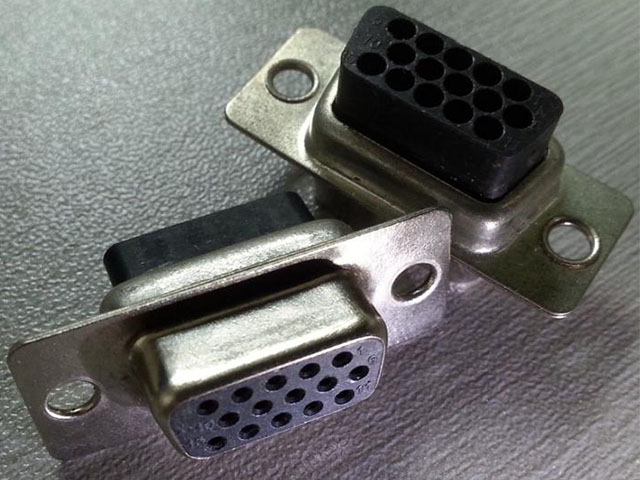

3 Row D-Sub adapter Connector 15P 26P 44P 62p Male Female

  • Model: KLS1-176B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

3 Row D-SUB Connector Adapter 15P 26P 44P 62p Male Female

Order Information
KLS1-176B-XX-M-B
XX-No.of 15,26,44,62 pins
M-Male    F-Female
L-Blue    B-Black

Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Shell: Steel, 100u” Tin Over 50u” min Nickel
Clinch Nut: Brass, 100u” min Nickel Plated
Screwlock: Brass, 100u” min Nickel Plated
Electrical Characteristics:
Current Rating: 2AMP
Insulator Resistance: 5000M ohms min. at DC 500V
Contact Resistance: 20m ohms max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
