3 pin pogo pin connector Plug-in type type

  • Model: KLS1-3PGC02
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

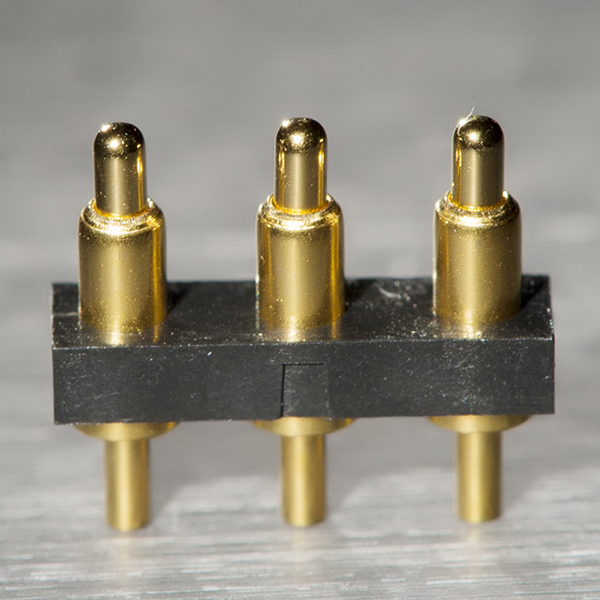

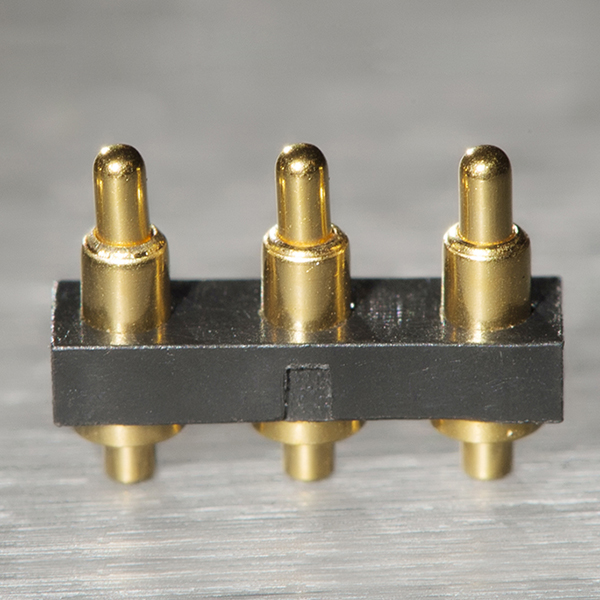

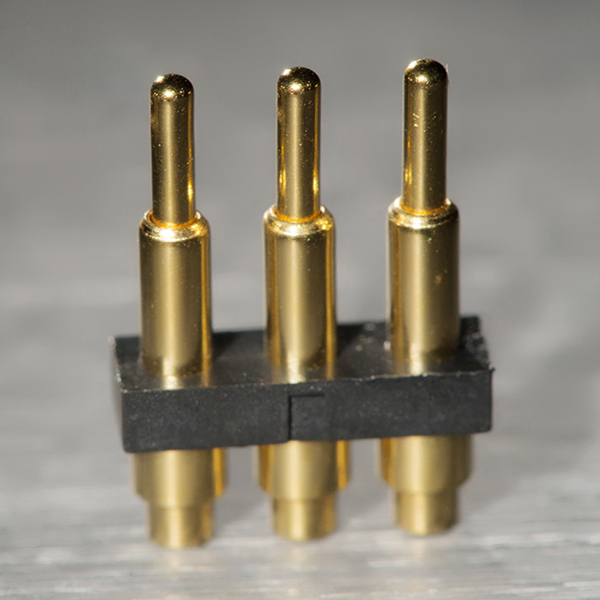

3 pin pogo pin connector Plug-in type type

Housing: PPA, PA46, PA9T, LCP

Pogo Pin OEM

Plastic Size(mm) Pogo Pin Size(mm)
L W H Pitch Cap Positioner A B C D E F Number of Pin

PACK:
Bulk: aluminum foil bag.

Reel: diameter Φ330mm; carrier tape width: 12, 16, 24, 32, 44mm.

=================================================================================
product testing introduction

Electrical performance
1 Contact impedance 30 mohm Max at working stroke Top-Link factory testing standard*
2 Insulation Resistance 500 Mohm Min EIA-364-21
3 Dielectric Withstanding Voltage No flash-over,air discharge,breakdown or leakage EIA-364-20
4 Temperature Rise vs Current Rating 30 °C Max.
temperature rise at specified current
EIA-364-70
Mechanical performance
1 Spring force refer to product drawing EIA-364-04
2 Retention Force 0.5Kgf(4.5N)Min. EIA-364-29
3 Durability 10,000 cycles Min.
No physical damage Resistance after test 30 mohm Max.
EIA-364-09
4 Vibration No physical damage,No electrical discontinuity more than 1i second. EIA-364-28
5 Mechanical Shock No physical damage,No electrical discontinuity more than 1i second. EIA-364-27 method A
Environmental
1 Solderability solder coverage area Min.95% EIA-364-52
2 Salt Spray Corrosion No physical damage. Resistance after test 100 mohm Max. EIA-364-26 condition B
3 Resistance to Solder heat(IR/convection) No cracks,chips,melting,orblister EIA-364-56
4 Humidity No physical damage, Resistance after test 100 mohm Max. EIA-364-31,method ii,condition A
5 Thermal Shock No physical damage, Resistance after test 100 mohm Max. EIA-364-32,method ii
6 Temperature Life No physical damage, Resistance after test 100 mohm Max. EIA-364-17,condition A,condition 4
Environmental
1 peel force 10-130 gf EIA-481
2 Drop Test Refer to drop test Standard of Molex

Remark: Considering the difference between test spot and actual work spot, the impedance test condition defined by Top-Link is based on the whole working stroke. This is what we generally said dynamic impedance testing, it differs from the static test condition of ELA-364923, the durability test standard is also based on this test condition.
———————————————————————————————————————————————————–
KLS is equipped with comprehensive inspection and reliability testing equipment.
KLS attaches great importance to quality management of each link, including IQC, IPQC, 100% dynamic testing of spring force and contact impedance , 100% appearance inspection, FQC sampling inspection, CQC, design verification, regular reliability testing, failure analysis, and so on.
KLS has implemented strict and effective quality control over each link which includes product design, sample preparation, trial production and mass production. As a consequence, our product quality is guaranteed.
==========================================================================================
pogo pin connector OEM type

1, small diameter, fine type products
   The minimum can be done is below 0.75
2, high durability
   Maximum durability of up to 1 million times
3, large current
   Maximum up to 15A current
4, high reliability
   100% dynamic impedance testing to ensure 100% functional zero defects
5, lower operating height
    Minimum working height of up to 1.5mm, the chopping block can be lower
6, high precision (size & forward force)
    Height tolerances up to +, – 0.05mm positive up to + / – 10%
7, non-standard structure
   Customer requirements can be customized according to customer requirements, such as: mushroom head structure
