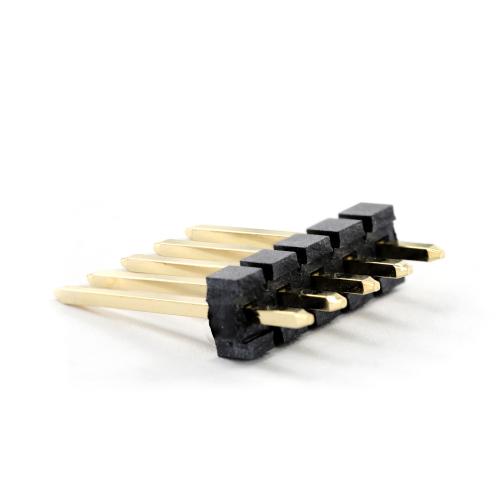

3.96mm Pitch Pin Header Connector

Order Information
KLS1-3.96D-1-XX-S-L1*L2*L3-SN
3.96D-3.96mm pitch pin haeder
1-Single layer
XX-Total pin number  (No.of 1~30pin)

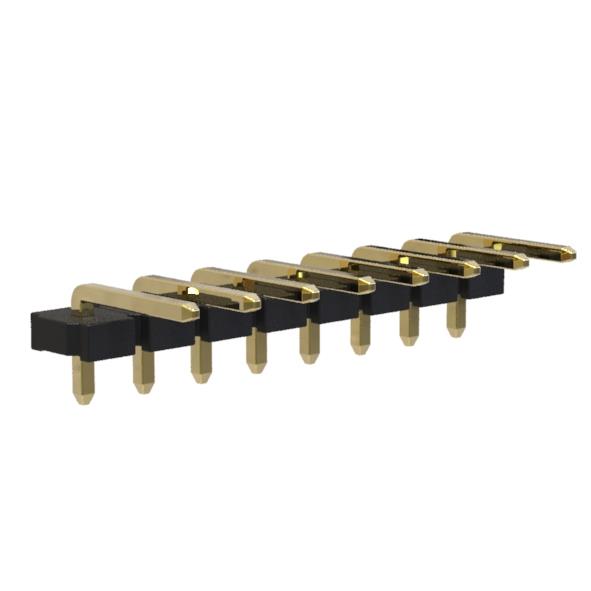

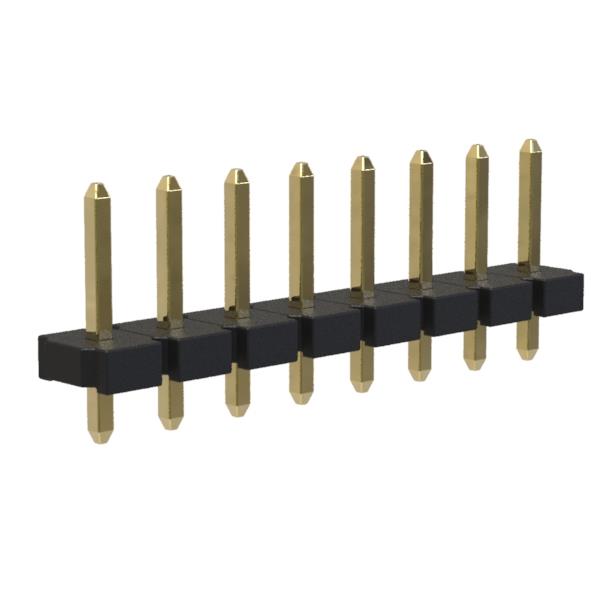

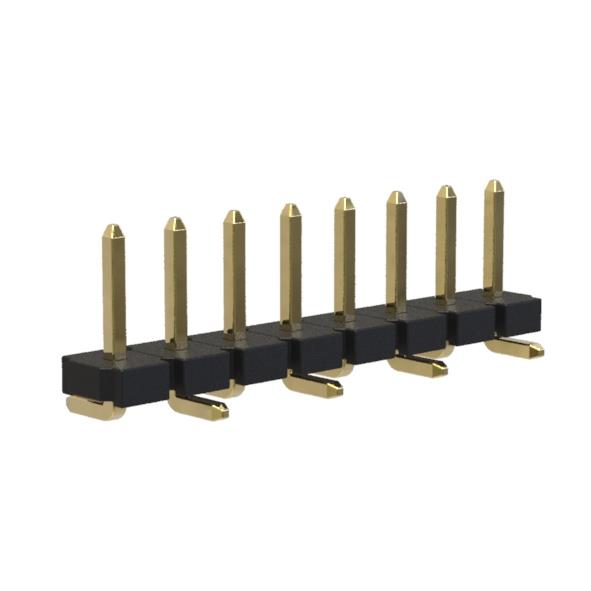

S-Straight Pin  R1-Right Angle Pin  T-SMT Pin
SIZE:L1*L2*L3
Plating_G0=Gold Flash  G1=1u” Gold   G10=10u” Gold   G15=15u” Gold   G30=30u” Gold    SN=Tin

Material:
Standard:LCP
Contact: Brass
Insulator:Polyester,UL94V-0

Electrical Characteristics:
Rated Current:            5AMP
Contact Resistance:    20mΩ Max
Withstand Voltage:     500V  AC/DC
Insulator Resistance: 1000MΩ Min

Mechanical
Operating Temperature: -40°C~+105°C
Max.Processing Temp:230°C for 30-60
            seconds (260°C for 5 seconds)

KLS1-3.96D.pdf
