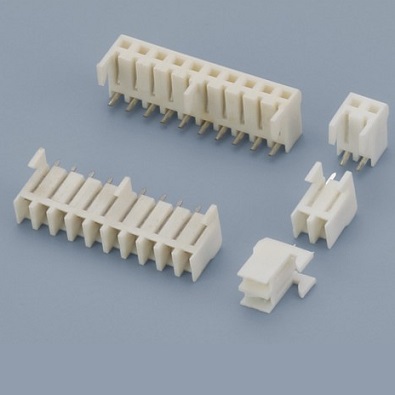

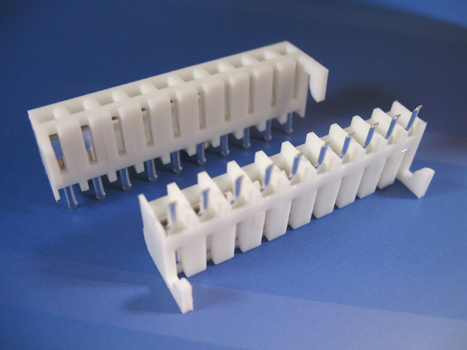

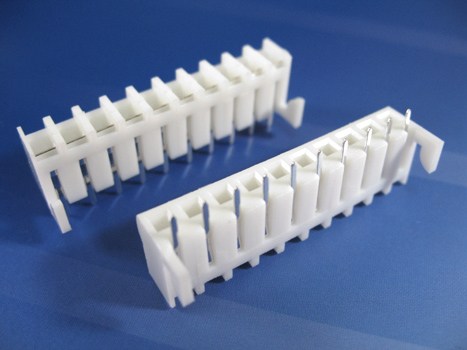

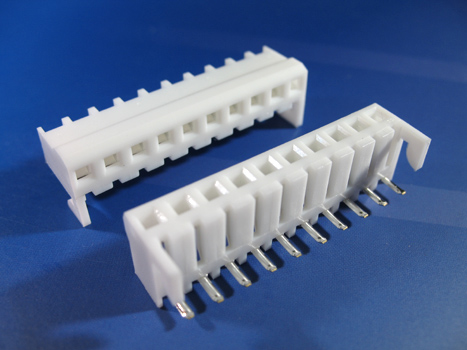

3.96mm Pitch Molex KK156 41815 2145 Board To Board Connector

Model: KLS1-3.96B
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

3.96mm Pitch Molex KK156 41815 2145 Board To Board Connector
Order information:
KLS1-3.96B-XX-AW
Pitch:3.96mm
XX-No.of 02~16 pins
BW CW-Straight male pin AW-Right angle male pin

Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:4.5A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:10mΩ Max.
