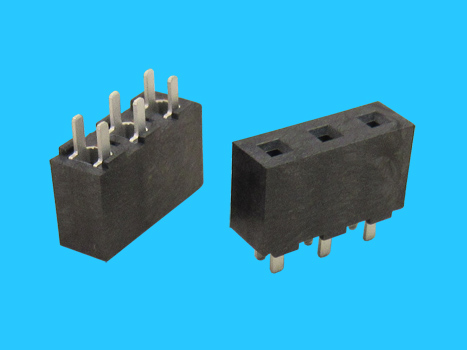

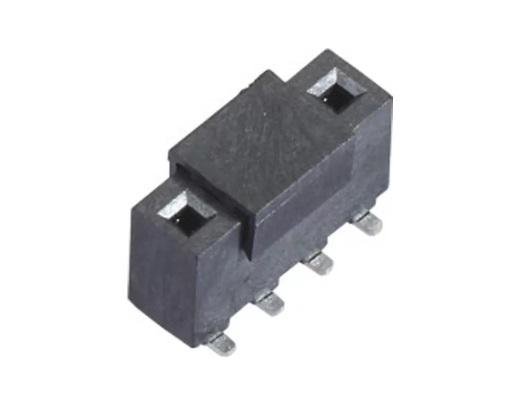

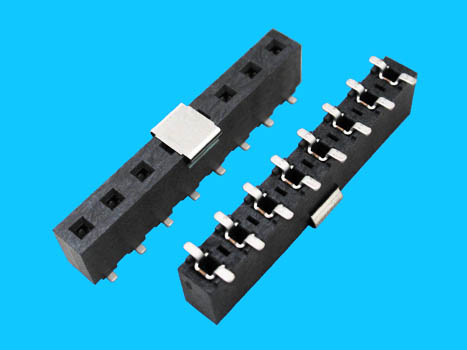

3.96mm Pitch Female Header Connector Height 8.9mm
- Product Details
3.96mm Pitch Female Header Connector Height 8.9mm
Order Information
KLS1-208E-8.9-1-XX-S-C
Height: 8.9mm
1-Single layer
XX-Total pin number (No.of 2~40pin)
S-Straight Pin T-SMT Pin
Material_B=PA6T C=LCP
Electrical Characteristics:
Current Rating: 7.0 AMP
Withstanding Voltage: 1500V AC,DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -45ºC~+105ºC
Material:
Insulator Material: Polyester (UL94V-0)
Standard: LCP
Contact Material: Brass
Contact Plating: Au or Sn over 50u” Ni
