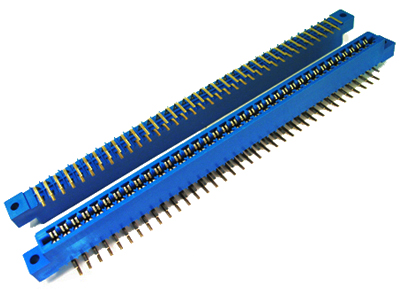

3.96mm Pitch Edge Card Connector Slot PCB

Order Information
KLS1-903R-XX-L
903R-Right Angle Pin type
XX-No,of 10~100 pin
L-Blue B-Black
Material:
Housing:PBT+30% Glass fiber (UL94V-0)
Contacts: Brass or Phosphor Bronze
Plating:Gold 1u” over nickel 50u”

Electrical Characteristics:
Current Rating:3.0A
Insulator Resistance:5000MΩ Min.
Contact Resistance:0.02Ω Max.
Dielectric withstand voltage:500V AC
Operating Temperature:-45ºC~+105ºC
