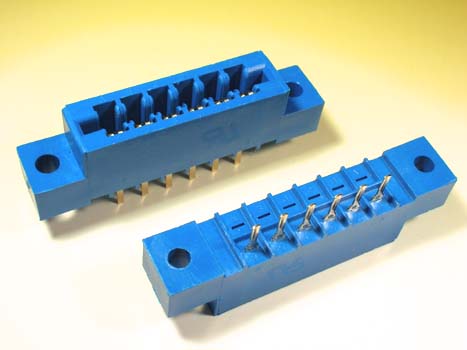

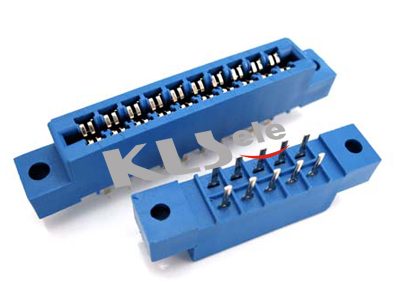

3.96mm Pitch Edge Card Connector PCB

Order Information
KLS1-903D-XX-L
903D-Dip 180 type
XX-No,of 10~100 pin
L-Blue
Material:
Housing: Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Contact gold and Dip Tin over Nickel
Electrical Characteristics:
Current Rating: 2 AMP
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 30m Ohm max. at DC 100mA
Withstanding Voltage:1000V AC /rms 50Hz for 1 minute
Operating Temperature: -45ºC~+105ºC
