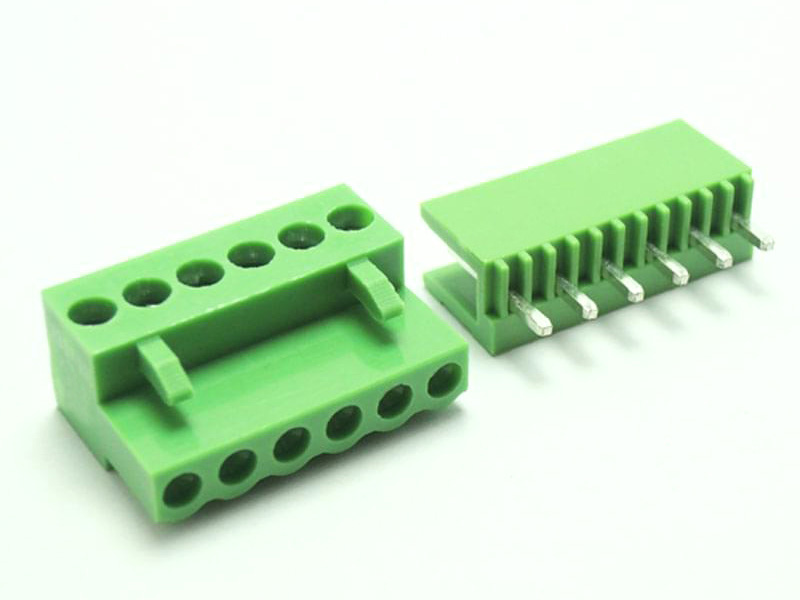

3.96mm Male Pluggable terminal block
- Product Details
Electrical:
Rated voltage: 300V
Rated current: 18A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:28-14AWG 2.5mm²
Material:
Screws: M3 steel Zinc plated
Contact: Brass,Ni Plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.5Nm (3.54lb.in)
Strip length: 7-8mm
