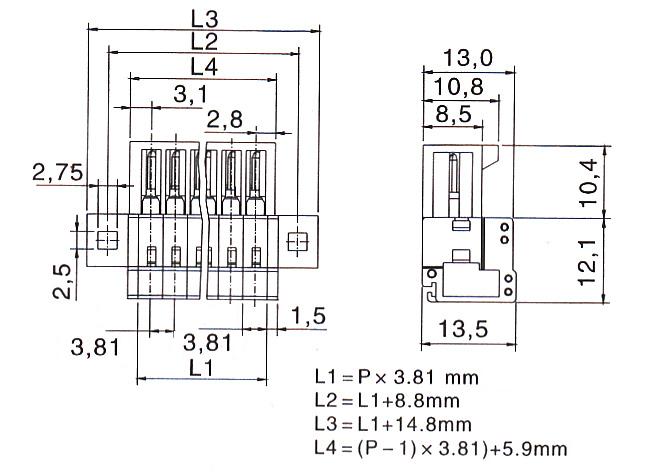

Pitch 3.81mm
Color Orange
Connection technology Spring cage clamp connection technology
Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc
Strip length 7mm
Insulation material PA66
Flammability rating conform to UL94 V0
Rated voltage V 250V
Rated current A 10A
Wire range mm² 0.2～1.5mm
UL Rated voltage V 300V
UL Rated current A 10A
UL Wire range AWG 24～16
