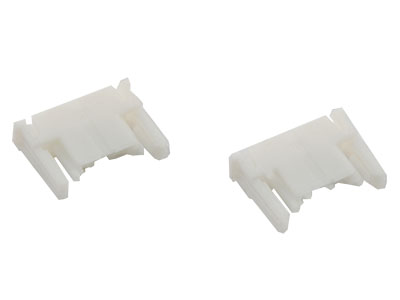

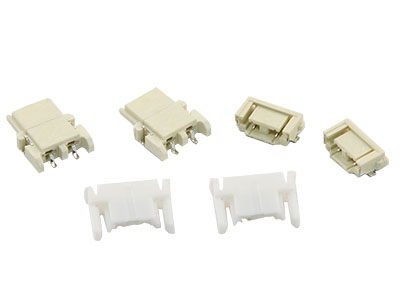

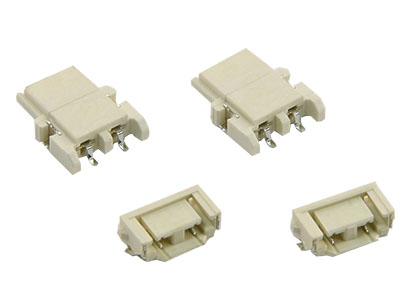

3.70mm Pitch  wire to board connector For LED Light bars

Order information:
KLS1-3.70-1-02-H
Pitch:3.70mm
1-Single layer
02-No.of 02 pins
H-Hosing   T-Terminal   WF WM-Horizontal SMT Pin

Specifications
◆Material: PA66/LCP UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:2A AC,DC
◆Voltage rating:500V AC,DC
◆Temperature range:-40℃~+85℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:30mΩ Max.

KLS1-3.70.pdf
