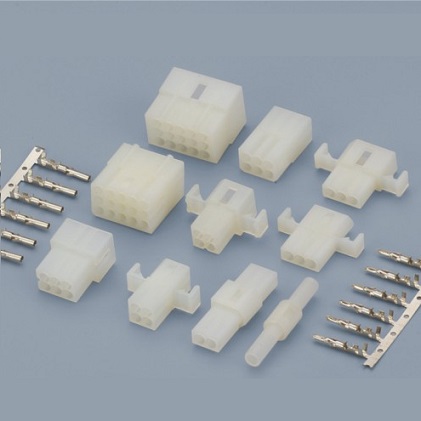

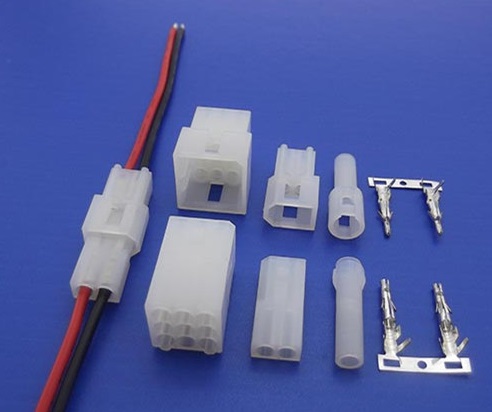

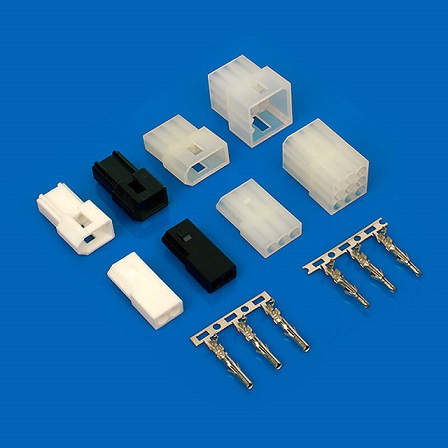

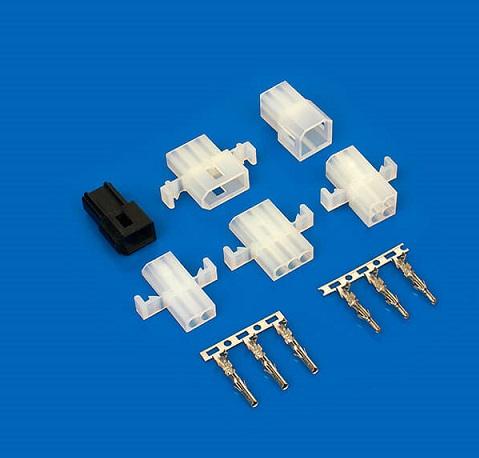

3.68mm Pitch MOLEX 5500 5600 Wire To Wire Connector

Order information:
KLS1-3.68-1×02-FH
Pitch:3.68mm
1-Single layer  2-Double layer
02-No.of 01~15 pins
FH RFH-Female Housing  MH RMH-Male Housing  FT-Female Terminal   MT-Male Terminal

Specifications
◆Material: PA66 UL 94V-2
◆Finish : Plated Tin over Nickel
◆Current rating:5.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#18~#24

KLS1-3.68.pdf
