3.5mm Stereo Phone Jack
- Product Details

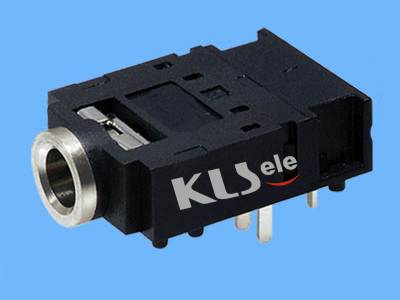

3.5mm Stereo Phone Jack For PCB Mount
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
CONTACT CLIP : C5210R-EH AG CLAD
Housing-A, Housing-B, INSULATOR, PIN BOARD: PA66
Terminal 1 : Copper Alloy
Terminal 2 : Copper Alloy
Terminal 3 : Copper Alloy
Terminal 10: Brass
Terminal 11: Brass
Terminal 4 5 6 : Brass
Bushing : Brass
Housing : Brass
