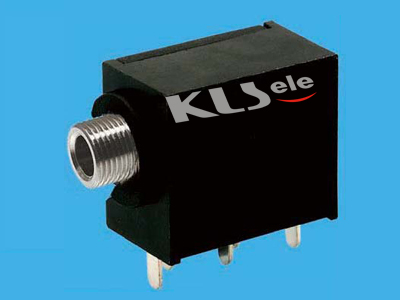

3.5mm Stereo Phone Jack For  Panel Mount

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing Cover : PBT
Center Pin Material:
Spring : Stainless Steel
Terminal 1 2 3 10 11 : Brass
Bushing : Brass

KLS1-TSJ3.5-008CA.pdf
