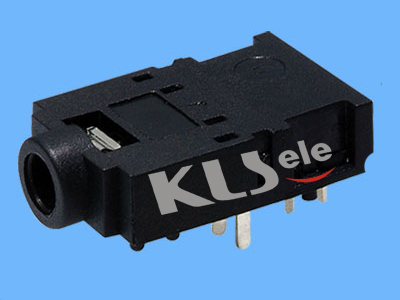

3.5mm Stereo Phone Jack

  • Model: KLS1-TSJ3.5-005B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

3.5mm  Stereo Phone Jack For PCB Mount

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing -A/B/INSULATOR/PIN BOARD:PA66
Contact Clip: C5210r-EH AG CLAD
Center Pin Material:
Terminal 1,2,3 : Copper Alloy
Terminal 4,5,6,7,8,9,10,11 : Brass
