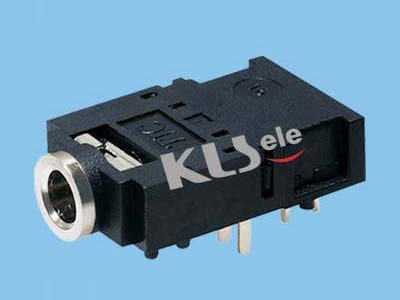

3.5mm  Stereo Phone Jack For PCB Mount

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing-A/B /Insulor/Pin Board :PBT
Contact Clip :C5210R-EH AG CLAD
Center Pin Material:
Terminal 1,2,3 :Copper Alloy
Terminal 4,5,6,7,8,9 :Brass
Terminal 10,11,Bushing :Brass
Spring :Stainless Steel

KLS1-TSJ3.5-005A.pdf
