3.5mm Stereo Phone Jack
- Product Details

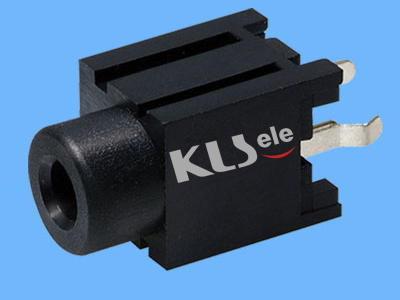

3.5mm Stereo Phone Jack For PCB Mount
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing/Cover:PBT
Center Pin Material:
Terminal 1,2 : Copper Alloy
Terminal 3,10 : Brass
