Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

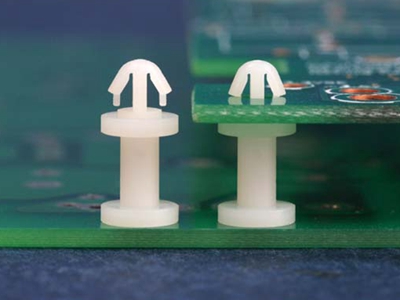

Application: the fixed PC board on the boards, free tools

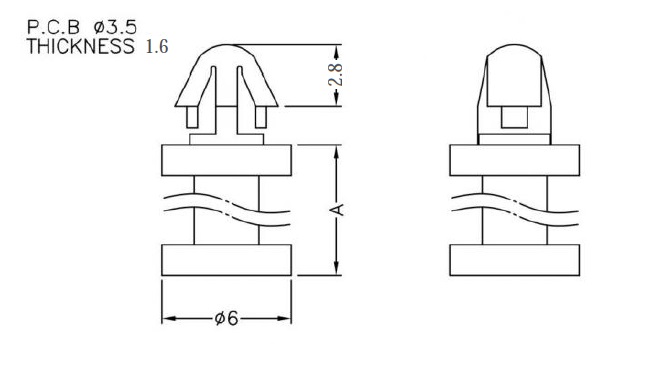

P/N | A | UPPER | Color | Packing | |||
PCB Hole | PCB THICKNESS | ||||||
mm | mm | mm | pcs | ||||
L-KLS8-0258-EK050 | 5.0 | 3.5 | 1.2~1.7 | Natural | 2000 | ||
L-KLS8-0258-EK090 | 9.0 | 3.5 | 1.2~1.7 | Natural | 2000 | ||
L-KLS8-0258-EK100 | 10.0 | 3.5 | 1.2~1.7 | Natural | 2000 |
