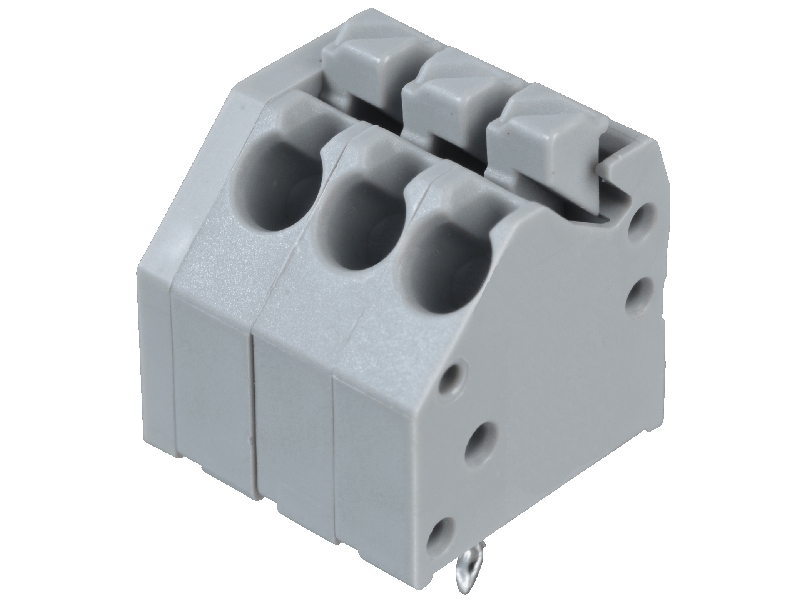

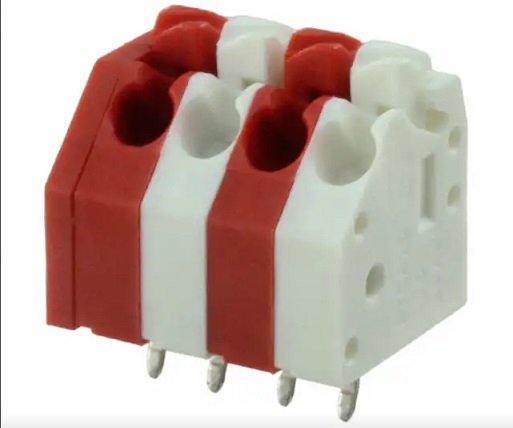

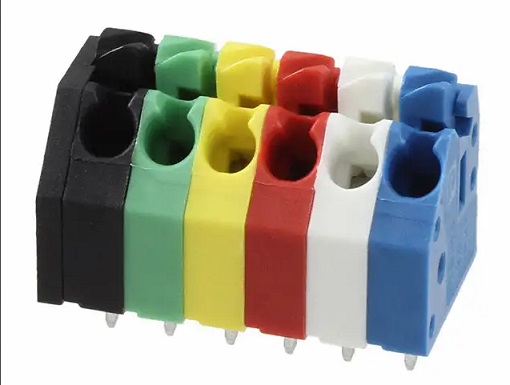

3.5mm Screwless Terminal Block Single layer pin

  • Model: KLS2-3.50V-5.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
Rated voltage: 300V
Rated current: 7A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/500V
Withstanding Voltage: AC2000V/1Min
Wire range: 26~16AWG  1.0MM²

Material:
Pin header: Phosphor bronze,Tin plated
Housing: PA66, UL94V-0

Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Strip length: 9~10mm
