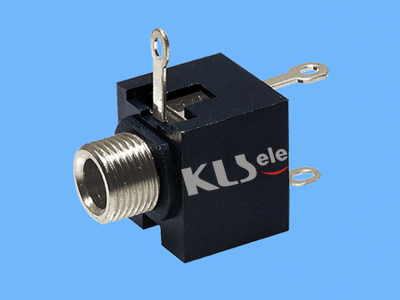

3.5mm Mono Phone Jack For Panel Mount

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing Material:PBT
Center Pin Material:
Terminal 1 :Brass
Terminal 2 :Copper Alloy
Terminal 3 :Brass
Bushing :Brass

KLS1-TG3.5-001A.pdf
