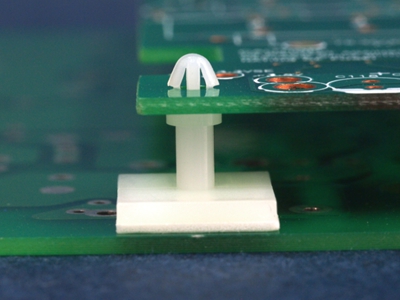

3.5mm With Adhesive Tape SPACER SUPPORT

  • Model: KLS8-0263
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature:  0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H  50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance:    B-130°C  (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

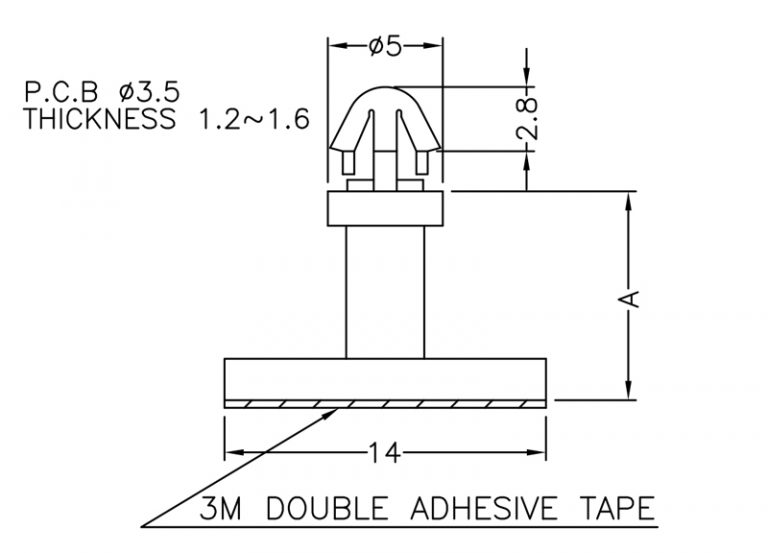

P/N A UPPER  Color Packing
PCB Hole PCB THICKNESS
  mm mm mm   pcs
L-KLS8-0263-ET-03 3.5 3.5 1.2~1.6 Natural 1000
L-KLS8-0263-ET-05 4.8 3.5 1.2~1.6 Natural 1000
L-KLS8-0263-ET-06 6.4 3.5 1.2~1.6 Natural 1000
L-KLS8-0263-ET-08 8.0 3.5 1.2~1.6 Natural 1000
L-KLS8-0263-ET-10 10.0 3.5 1.2~1.6 Natural 1000
L-KLS8-0263-ET-13 12.7 3.5 1.2~1.6 Natural 1000
