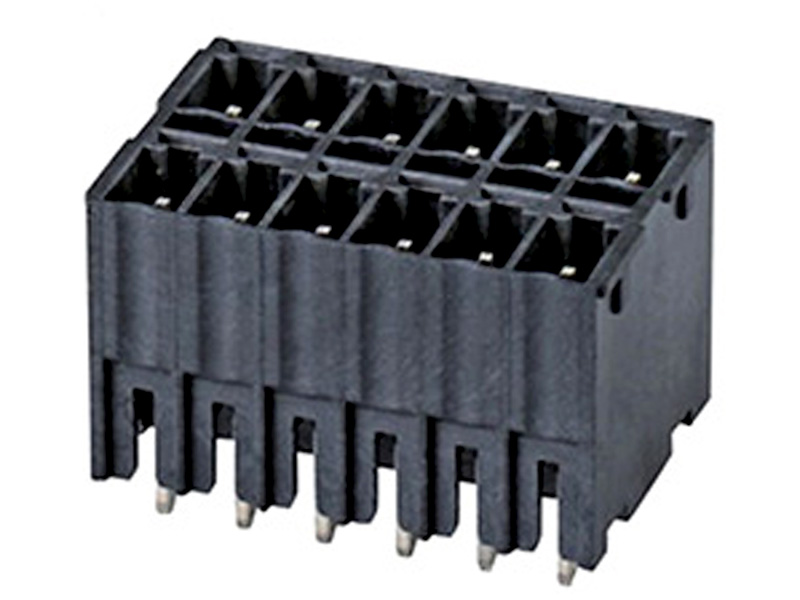

3.50mm Reflow solder LCP housing terminal blocks

  • Model: KLS2-THREDVH-3.50
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material
Pin header:  Brass , Tin plated
Housing:      LCP , UL94V-0,Black
Electrical
Rated voltage:   300V
Rated current:    8A
Contact Resistance: 20 m Ω
Insulation resistance:  500MΩ/DC500V
Withstand voltage:      AC2000V / 1 min
Mechanical
Temp. Range:   -40 ° C ~ + 130 ° C
Soldering:       285° C±5° C   for   10S
