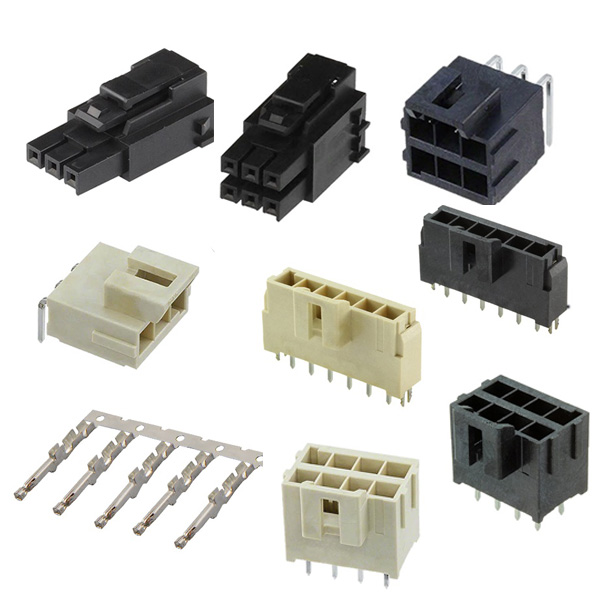

3.50mm Pitch MOLEX Ultra-Fit 172256 172258 Wire To Board Connector
- Product Details
3.50mm Pitch MOLEX Ultra-Fit 172256 172258 Wire To Board Connector
Order information:
KLS1-XL2-3.50-1X02-H-B
Pitch:3.50mm
1-Single layer 2-Double layer
02-No.of 02~24 pins

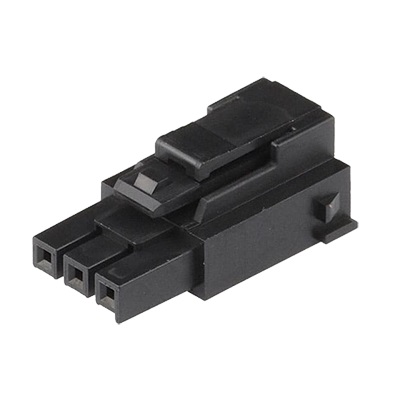

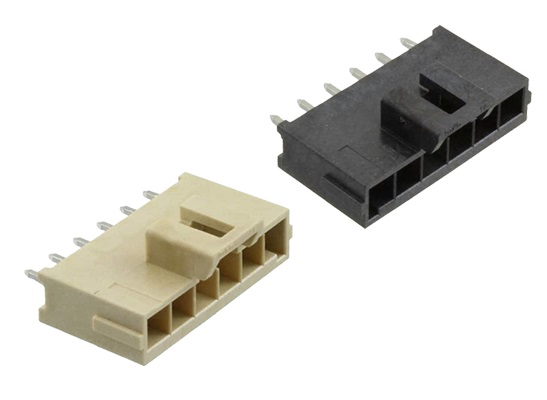

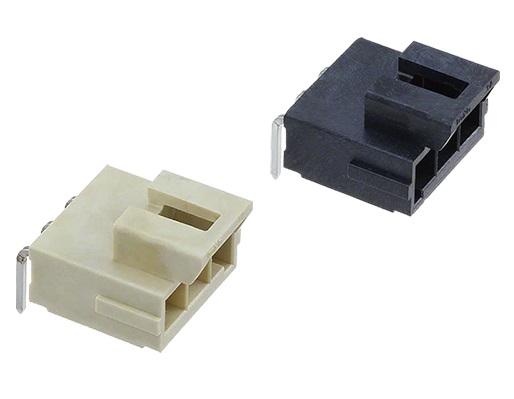

H-Housing T-Terminal S1 S2-Straight male pin R1 R2-Right angle male pin
Color: A-KEY A,Black B-KEY B,Natural
Specifications
◆Material: PA66/LCP UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:14A AC,DC
◆Voltage rating:400V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1800V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#16~#22
