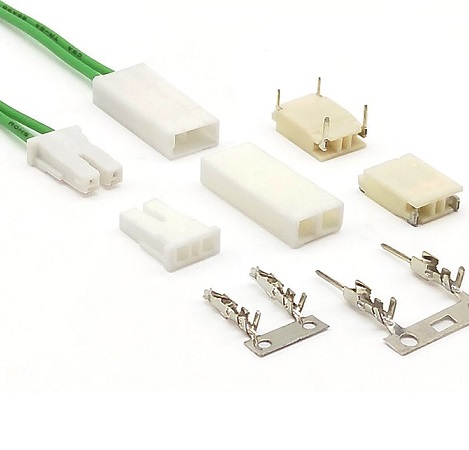

3.50mm Pitch JST BHS Type Wire To Board Connector
Order information:
KLS1-BH-3.50-02-FH1
Pitch:3.50mm
02-No.of 02 pins
FH1 FH2-Female Housing MH1 MH2-Male Housing FT-Female Terminal MT-Male Terminal R-Right angle male pin RM-Horizontal SMT Pin
Specifications
◆Material: PA66/PA9T UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:1400V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:3800V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#24~#28
