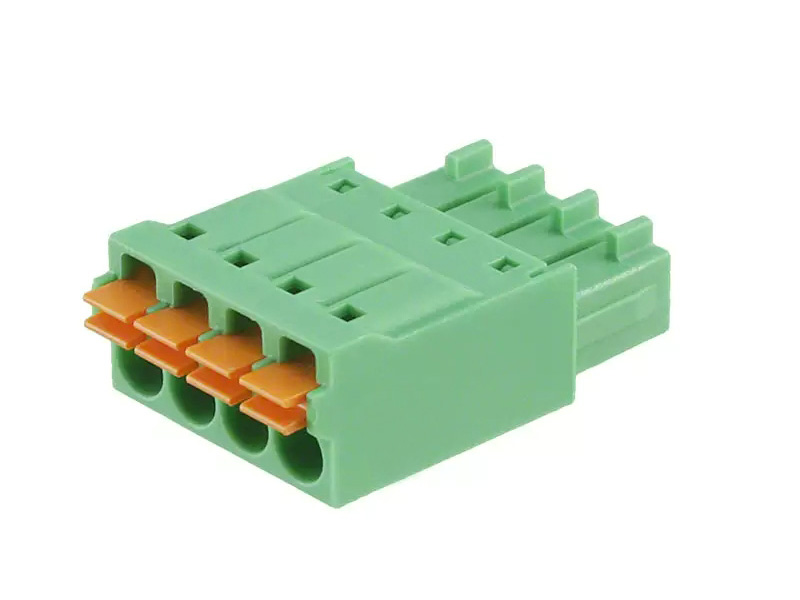

3.50mm Male Pluggable terminal block
- Product Details
Electrical:
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range: 24-16AWG 1.5mm²
Material:
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
Strip length:9-10mm
