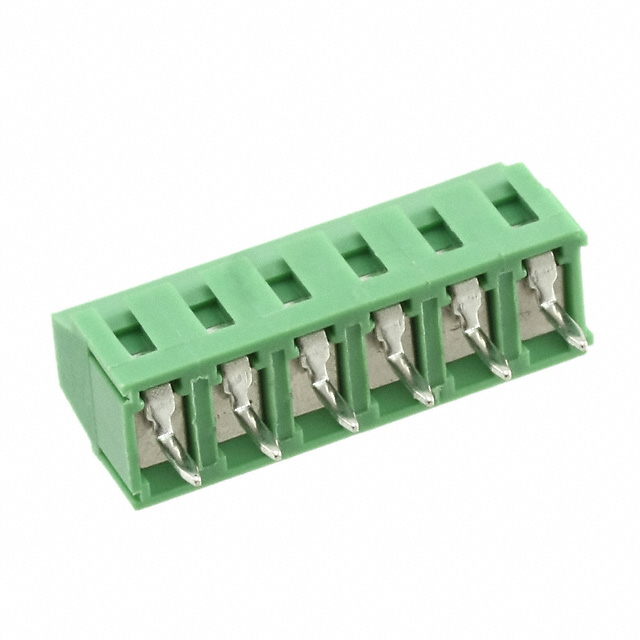

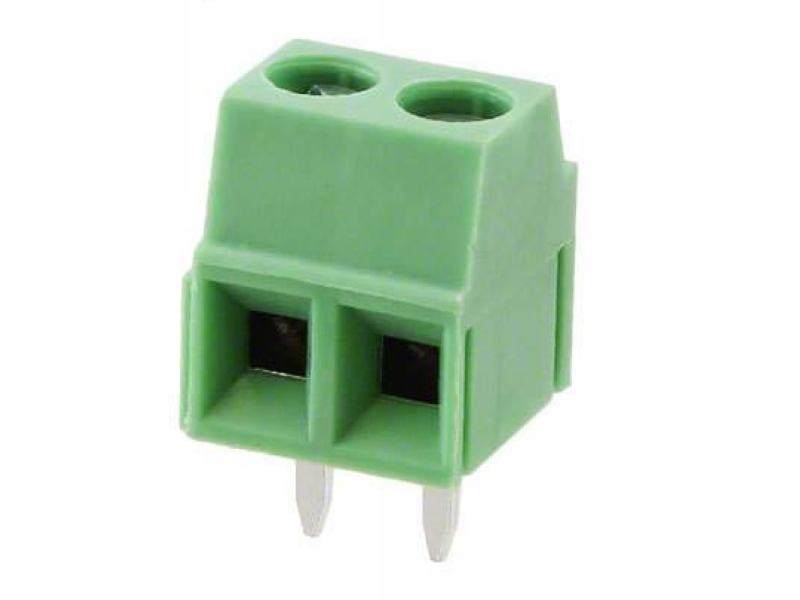

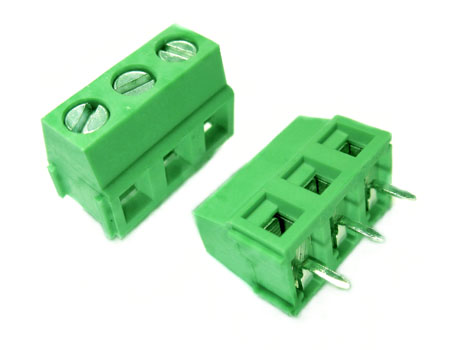

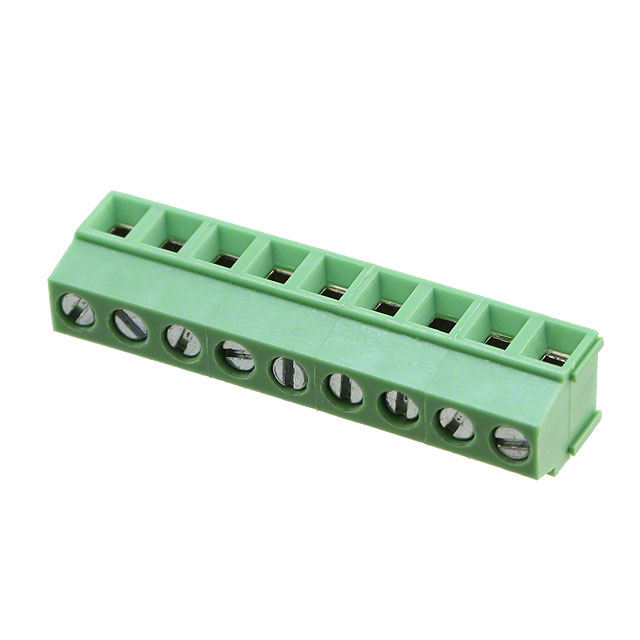

3.50mm Pitch PCB Terminal Block / 3.81mm Pitch PCB Terminal Block

Electrical :
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 26-16AWG 1.0mm²

Material：
Screws: M2 steel Zinc plated
Contact: Brass,Nickel Plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0

Mechanical：
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.2Nm (1.77lb.in)
Strip length: 5-6mm

KLS2-125-3.5 & 3.81.pdf
