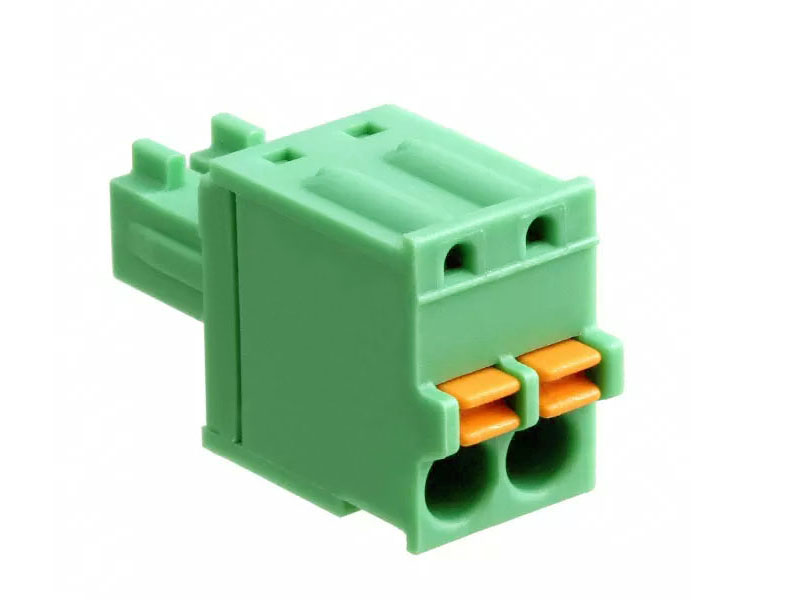

3.50mm & 3.81mm Male Pluggable terminal block
- Product Details
Electrical:
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range: 28-16AWG1.5mm²
Material:
Contact: Brass,Sn Plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
Torque: 0.5Nm (3lb.in)
Strip length: 7-8mm
