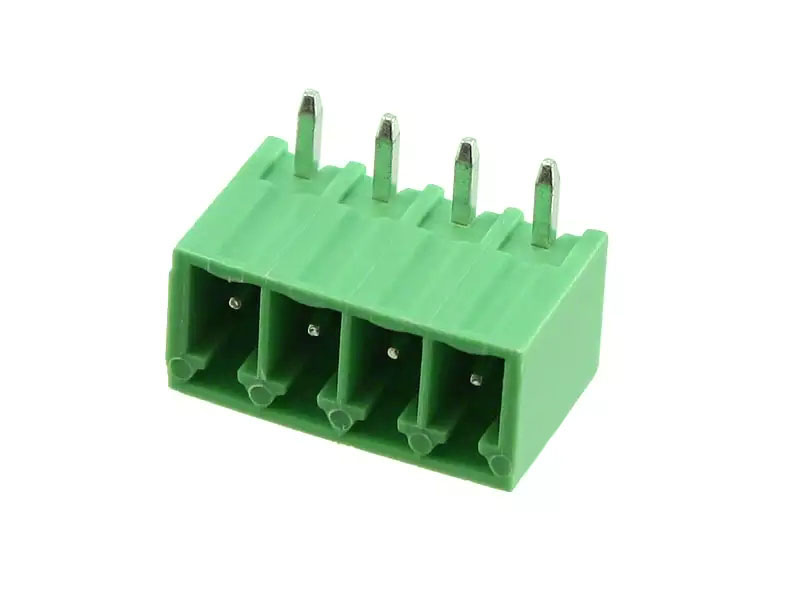

3.50mm & 3.81mm Female Pluggable terminal block Right Angle

Model: KLS2-EDR-3.50&3.81
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Electrical:
Rated voltage: 300V

Rated current: 8A

Contact resistance: 20mΩ

Insulation resistance: 500MΩ/DC500V

Withstanding Voltage: AC1600V/1Min

Material:
Pin header: Brass, Sn plated

Housing: PA66, UL94V-0

Mechanical:
Temp. Range: -40ºC~+130ºC

MAX Soldering: +285ºC for 10 Sec.

PDF

KLS2-EDR-3.50 & 3.81.pdf
